Spesifikasi

Desain

• Form Factor: Mini-ITX (17 cm x 17 cm)

• Pre-mounted I/O shield

• ROG Strix aesthetic dengan Aura Sync RGB

• M.2 heatsink dengan backplate pendingin

Prosesor & Chipset

• Socket: AMD AM5

• Chipset: AMD B850

• Dukungan CPU: AMD Ryzen™ 9000, 8000, dan 7000 Series

Memori

• 2 x DIMM Slots, hingga 128GB DDR5

• Mendukung hingga 8400+ MT/s (OC)

• Dual Channel, ECC & Non-ECC

• Mendukung AMD EXPO™ dan ASUS AEMP Profile

Grafis

• 1 x HDMI™ 2.1 Port (4K@60Hz)

• 1 x USB Type-C® dengan Display Output (4K@60Hz, DP 1.4a)

Slot Ekspansi

• AMD Ryzen™ 9000 & 7000: 1 x PCIe 5.0 x16 Slot (Q-Release Slim)

• AMD Ryzen™ 8000: 1 x PCIe 4.0 x16 Slot (Q-Release Slim)

Penyimpanan

• 2 x M.2 Slots (PCIe 5.0 atau 4.0 tergantung CPU)

• 2 x SATA 6Gb/s Ports

Koneksi Jaringan

• LAN: 1 x Intel® 2.5Gb Ethernet dengan ASUS LANGuard

• Wireless: Wi-Fi 7 (2×2) mendukung 2.4/5/6 GHz

• Bluetooth: v5.4

USB

• Rear Panel (8 Port)

  • 1 x USB 20Gbps (Type-C®)

  • 5 x USB 10Gbps (4 x Type-A, 1 x Type-C®)

  • 2 x USB 2.0 (Type-A)

• Front Panel (5 Port)

  • 1 x USB 10Gbps (Type-C®)

  • 1 x USB 5Gbps Header (2 Ports)

  • 1 x USB 2.0 Header (2 Ports)

Audio

• ROG SupremeFX 7.1 Surround Sound (ALC4080)

• Dukungan High-Resolution Audio hingga 32-Bit/384kHz

• Rear Optical S/PDIF Out Port

• Premium Audio Capacitors & Shielding

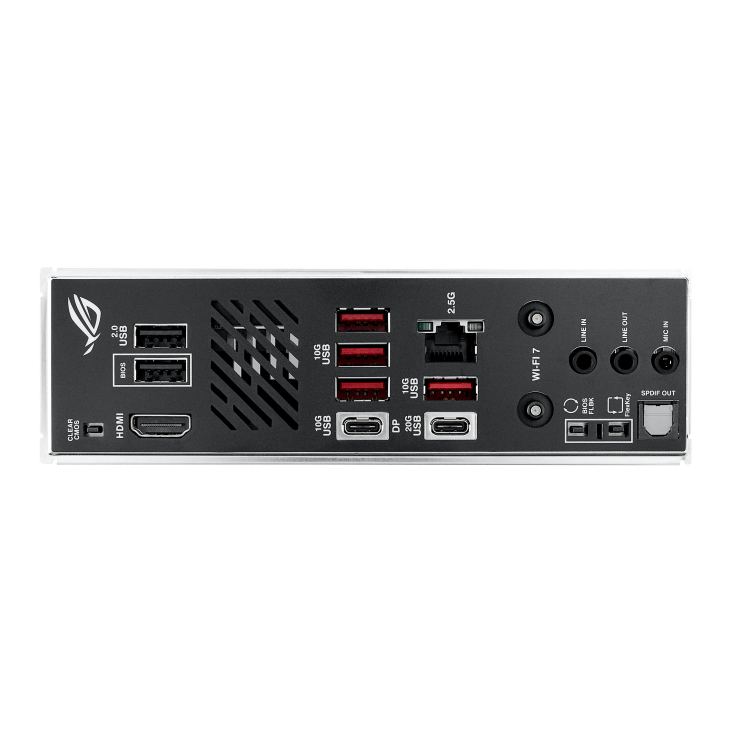

Back Panel I/O

• 1 x HDMI™ Port

• 1 x Wi-Fi Module

• 1 x Intel® 2.5Gb Ethernet Port

• 3 x Audio Jacks + 1 x Optical S/PDIF Out

• 1 x BIOS FlashBack™ Button

• 1 x Clear CMOS Button

• 1 x FlexKey Button

Internal Connector

• 1 x 24-pin ATX Main Connector

• 1 x 8-pin CPU Power Connector

• 1 x 4-pin CPU Fan Header

• 1 x 4-pin AIO Pump Header

• 2 x M.2 Slots

• 2 x SATA Ports

• 2 x Addressable Gen 2 RGB Headers

• 1 x Thermal Sensor Header

Fitur Khusus

• ASUS Q-Design (Q-Release, Q-Latch, Q-LED)

• Extreme Engine Digi+ untuk manajemen daya

• BIOS FlashBack™ & Clear CMOS Support

• ASUS Armoury Crate, Fan Xpert 4, GameFirst, Aura Creator

• Dolby Atmos Support

Aksesori dalam Paket

• 2 x Kabel SATA 6Gb/s

• 1 x ASUS WiFi Q-Antenna

• 1 x ROG Key Chain & Sticker Set

• 1 x Quick Start Guide

• Paket M.2 Q-Latch & Rubber

Kompatibilitas Sistem Operasi

• Windows 11
