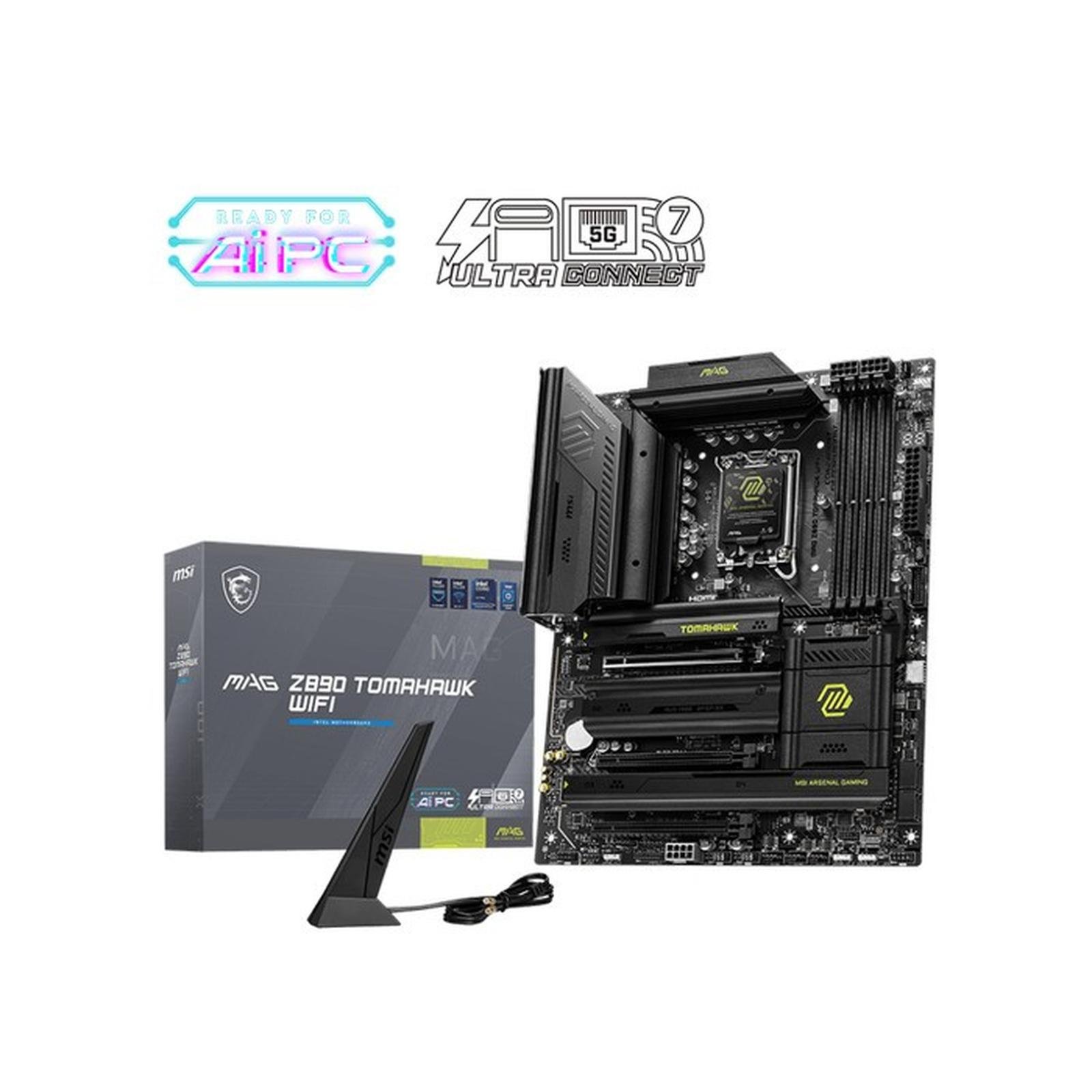

MOTHERBOARD MSI MAG Z890 TOMAHAWK WIFI Z890 LGA1851 DDR5 – ATX

Nama Produk
MOTHERBOARD MSI MAG Z890 TOMAHAWK WIFI Z890 LGA1851 DDR5 – ATX

Deskripsi Produk

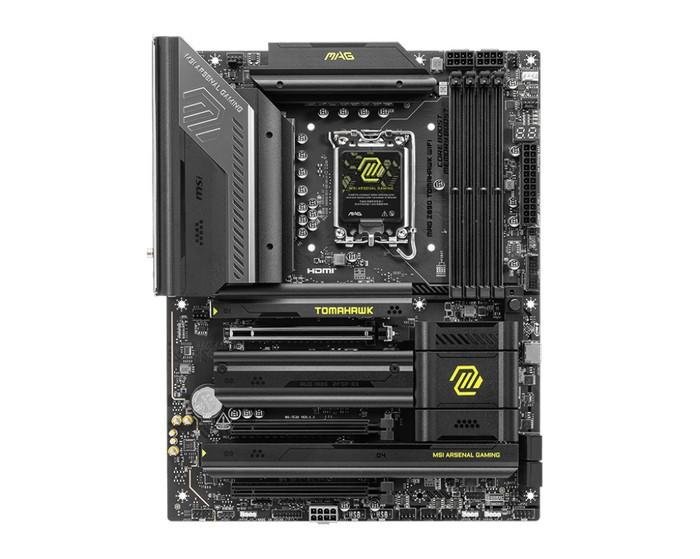

MSI MAG Z890 TOMAHAWK WIFI adalah motherboard gaming kelas high-performance berbasis chipset Intel Z890dengan socket LGA1851, dirancang untuk Intel Core Ultra Processors Series 2. Motherboard ini menggunakan memori DDR5, mendukung PCIe 5.0, storage M.2 Gen5, Wi-Fi 7, 5Gbps LAN, serta Thunderbolt 4 untuk konektivitas berkecepatan tinggi.

Spesifikasi Utama

• Brand: MSI

• Series: MAG TOMAHAWK

• Model: MAG Z890 TOMAHAWK WIFI

• Chipset: Intel Z890

• Socket: LGA1851

• CPU Support: Intel Core Ultra Processors Series 2

• Form Factor: ATX

• Dimension: 304.8 × 243.84 mm

• Memory: 4× DDR5 DIMM

• Maximum Memory: 256GB

• Memory Speed: hingga 9200+ MT/s OC

• Intel XMP 3.0 Support

• CUDIMM Support

• Dual-Channel Memory

Power Design

• 16+1+1+1 Duet Rail Power System

• 90A Smart Power Stage

• Dual 8-Pin CPU Power

• Core Boost

• Memory Boost

• 6-Layer Server-Grade PCB

• 2oz Thickened Copper

Expansion Slot

• 1× PCIe 5.0 x16

• 2× PCIe 4.0 x16 physical slot, hingga x4 bandwidth

• Steel Armor II pada slot utama

Storage

• 4× M.2 Slot

• 1× M.2 PCIe 5.0 x4

• 2× M.2 PCIe 4.0 x4

• 1× M.2 PCIe 4.0 x4 / SATA

• 4× SATA 6Gb/s

• EZ M.2 Shield Frozr II

• EZ M.2 Clip II

• Mendukung RAID untuk SATA dan NVMe

Networking

• Intel Killer Wi-Fi 7 BE1750x

• 2.4GHz / 5GHz / 6GHz

• Hingga 5.8Gbps

• MLO & 4K QAM Support

• Bluetooth 5.4

• Intel Killer E5000 5Gbps LAN

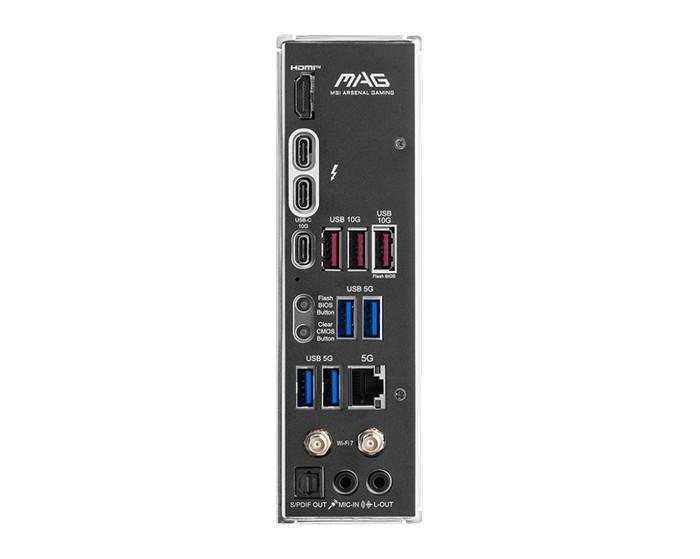

Thunderbolt & USB

• 2× Thunderbolt 4 Type-C 40Gbps

• Display output hingga 8K 60Hz

• 1× USB 10Gbps Type-C Rear

• 3× USB 10Gbps Type-A Rear

• 4× USB 5Gbps Type-A Rear

• Front USB-C hingga 20Gbps

• Front USB-C mendukung USB PD hingga 27W

• Thunderbolt 5 add-in card connector tersedia

Display Output

• 1× HDMI 2.1 hingga 4K 120Hz

• 2× DisplayPort 2.1 melalui Thunderbolt 4 Type-C

• Mendukung hingga 4K 120Hz / 8K 60Hz

Output display onboard membutuhkan processor dengan integrated graphics.

Audio

• Realtek ALC1220P

• 7.1-Channel High Definition Audio

• S/PDIF Optical Output

• MSI Audio Boost 4

RGB / ARGB

• 3× Addressable V2 RGB Header

• 1× RGB LED Header

• MSI Mystic Light Support

Fitur Unggulan

• Intel Z890 Chipset

• Intel Core Ultra Series 2 Support

• DDR5 hingga 256GB

• DDR5 hingga 9200+ MT/s OC

• PCIe 5.0 x16

• M.2 PCIe 5.0 x4

• Wi-Fi 7

• Bluetooth 5.4

• Killer 5Gbps LAN

• Dual Thunderbolt 4 40Gbps

• 16+1+1+1 Power Design 90A

• EZ PCIe Release

• EZ M.2 Shield Frozr II

• EZ M.2 Clip II

• EZ Antenna

• Extended Heatsink

• Pre-installed I/O Shield

• Flash BIOS Button

• Clear CMOS Button

MSI MAG Z890 TOMAHAWK WIFI cocok untuk gaming PC high-end, content creation, workstation, AI PC, serta rakitan Intel Core Ultra yang membutuhkan konektivitas dan ekspansi kelas atas.
