Spesifikasi

Prosesor & Chipset

• Socket: LGA1700

• Dukungan CPU: Intel® Core™ Generasi ke-14 / 13 / 12, Pentium® Gold, Celeron®

• Chipset: Intel® B760 Express

Memori

• Jenis: DDR5 4000–7600(O.C.) MT/s

• Slot: 4 x DIMM, hingga 256 GB

• Arsitektur: Dual channel

• Fitur: Mendukung ECC* & non-ECC, XMP
  (*ECC berfungsi dalam mode non-ECC)

Grafis Terintegrasi

• Output:

  • 1 x HDMI 2.1 (maks. 4096×2160@60Hz)

  • 2 x DisplayPort 1.2 (maks. 4096×2304@60Hz)

• Dukungan triple display

• Spesifikasi bergantung pada CPU yang digunakan

Audio

• Codec: Realtek® Audio CODEC

• Saluran: 2/4/5.1/7.1-channel HD Audio

• Fitur: Mendukung S/PDIF Out

Jaringan

• LAN: Realtek® 2.5GbE

• Wi-Fi: Tergantung revisi PCB:

  • Wi-Fi 6E (Realtek/Intel/AMD)

  • Bluetooth 5.2 / 5.3

  • Dukungan band 2.4/5/6 GHz

Slot Ekspansi

• 1 x PCIe 4.0 x16 (CPU)

• 2 x PCIe 3.0 x1 (Chipset)

Penyimpanan

• 2 x M.2 PCIe 4.0 x4/x2 (2280)

• 4 x SATA 6Gb/s

• RAID: 0 / 1 / 5 / 10 (SATA)

USB

• Back Panel:

  • 1 x USB Type-C® (USB 3.2 Gen 2)

  • 3 x USB 3.2 Gen 1

  • 2 x USB 2.0

• Internal Header:

  • 2 x USB 3.2 Gen 1 (2 port)

  • 2 x USB 2.0 (4 port)

Header & Konektor Internal

• 1 x 24-pin ATX, 1 x 8-pin 12V

• 1 x CPU fan, 3 x system fan

• 1 x RGB + 1 x ARGB

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0 headers

• 2 x M.2 Socket 3

• 1 x TPM header

• 1 x S/PDIF Out header

• 1 x Q-Flash Plus button

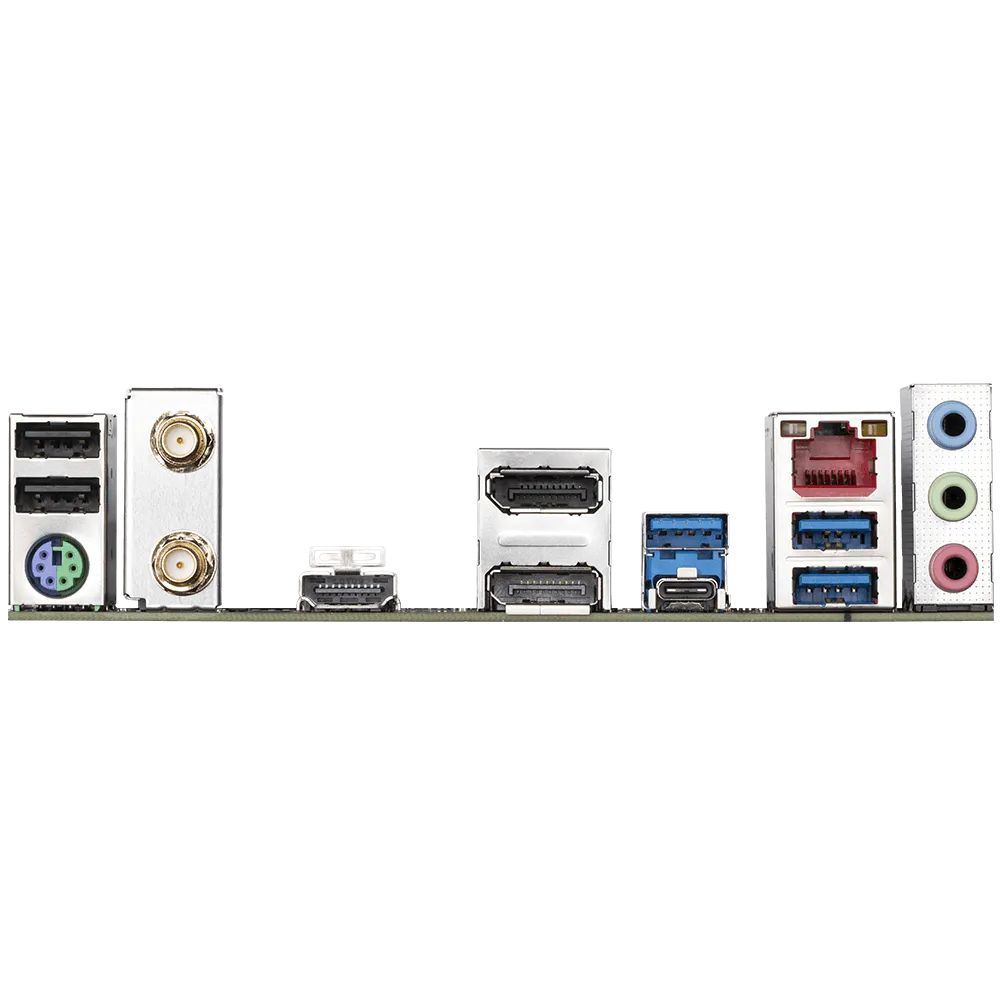

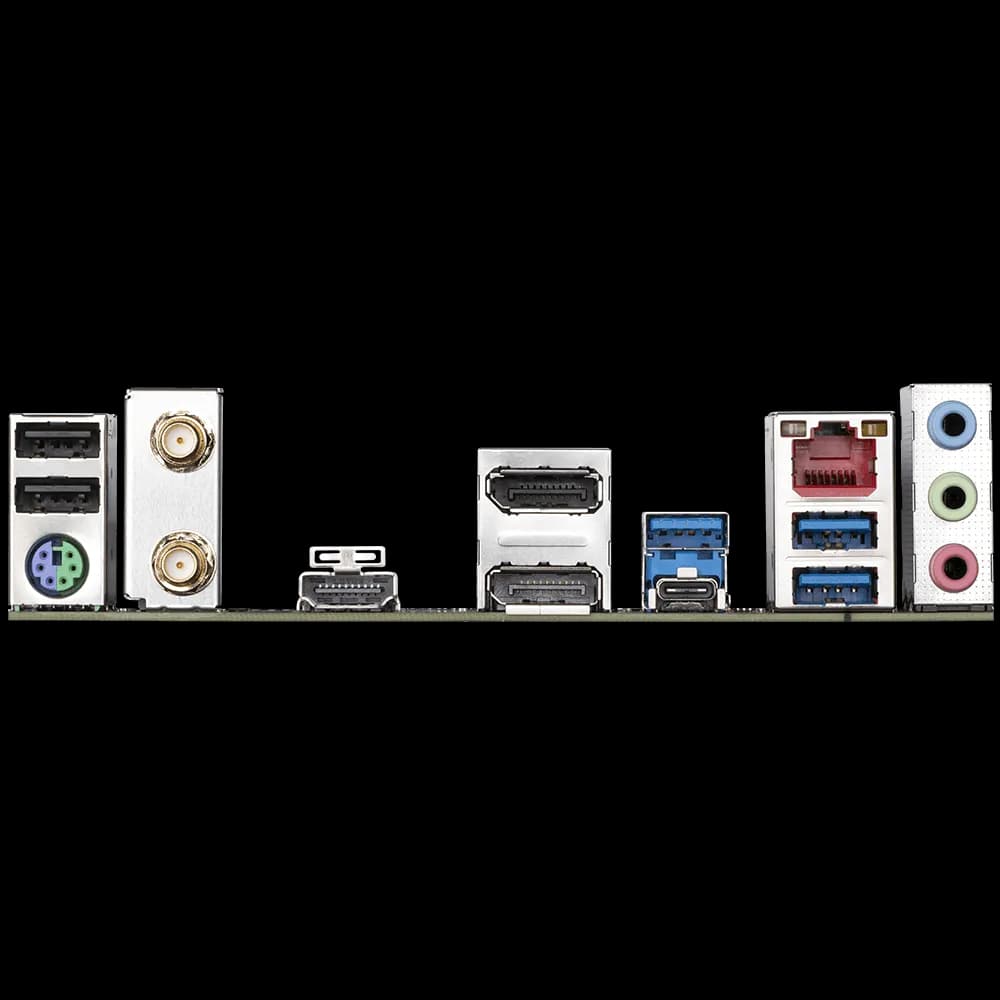

Panel Belakang

• 1 x PS/2 port

• 2 x DisplayPort + 1 x HDMI

• 3 x USB 3.2 Gen 1

• 2 x USB 2.0

• 1 x USB Type-C® Gen 2

• 1 x RJ-45 LAN

• 2 x konektor antena Wi-Fi

• 3 x audio jack

Fitur Tambahan

• Dukungan GIGABYTE Control Center

• Q-Flash & Q-Flash Plus

• OS: Windows 10/11 64-bit

• Form Factor: Micro ATX (24.4 x 24.4 cm)
