Spesifikasi :

Prosesor

• Soket: LGA1851

• Kompatibel dengan Intel Core Ultra Processors (Series 2)

• Mendukung Intel Turbo Boost Technology 2.0 & 3.0

Chipset

• Intel Z890

Memori

• 4 x Slot DIMM, hingga 192GB

• Mendukung DDR5 hingga 9066+ MT/s (OC)

• Non-ECC, Un-buffered, Dual Channel

• Mendukung Intel XMP & ASUS Enhanced Memory Profile III (AEMPIII)

Slot Ekspansi

• 1 x PCIe 5.0 x16

• 1 x PCIe 4.0 x16 (x4 mode)

• 1 x PCIe 4.0 x4

• 2 x PCIe 4.0 x1

Penyimpanan

(Tambahan penting berdasarkan tipe motherboard)

• 4 x M.2 slot (NVMe, PCIe Gen5 & Gen4 tergantung konfigurasi)

• 4 x SATA 6Gb/s

Konektivitas

• WiFi: WiFi 6E

• LAN: Intel 2.5Gb Ethernet

• Bluetooth 5.3

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

• Audio shielding & premium audio capacitors

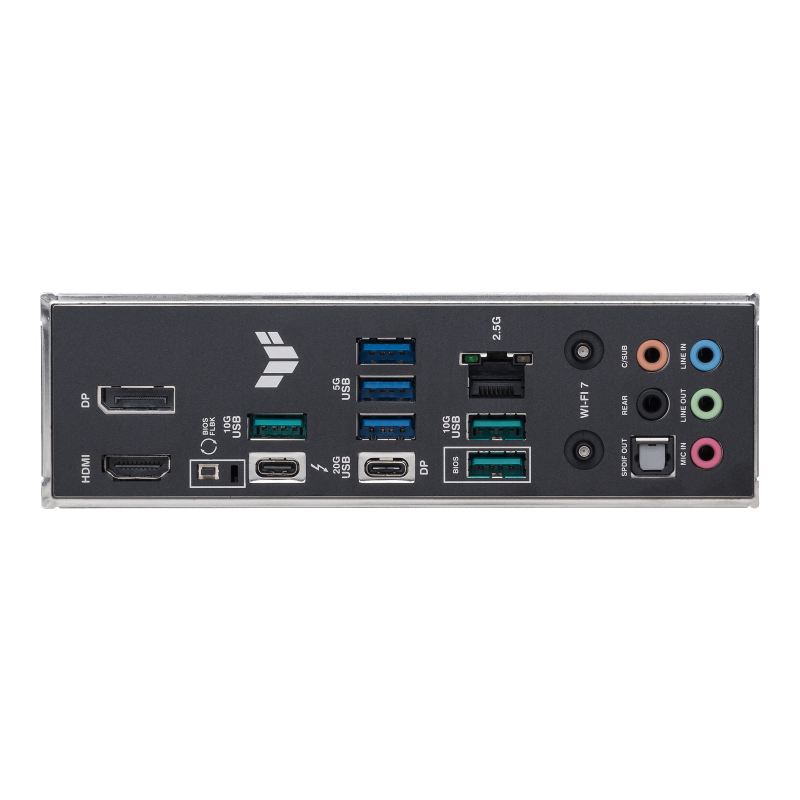

Port I/O Belakang

• 1 x HDMI

• 1 x DisplayPort

• 4 x USB 3.2 Gen 2 (Type-A)

• 1 x USB 3.2 Gen 2×2 (Type-C)

• 2 x USB 2.0

• 1 x RJ-45 LAN

• 5 x Audio jack + 1 x Optical S/PDIF

Fitur Tambahan

• ASUS TUF Components (TUF Capacitors, TUF Chokes, dll.)

• 14+1 Power Stage Design

• Q-LED diagnostic

• VRM & chipset heatsink besar dengan thermal pad
