Spesifikasi

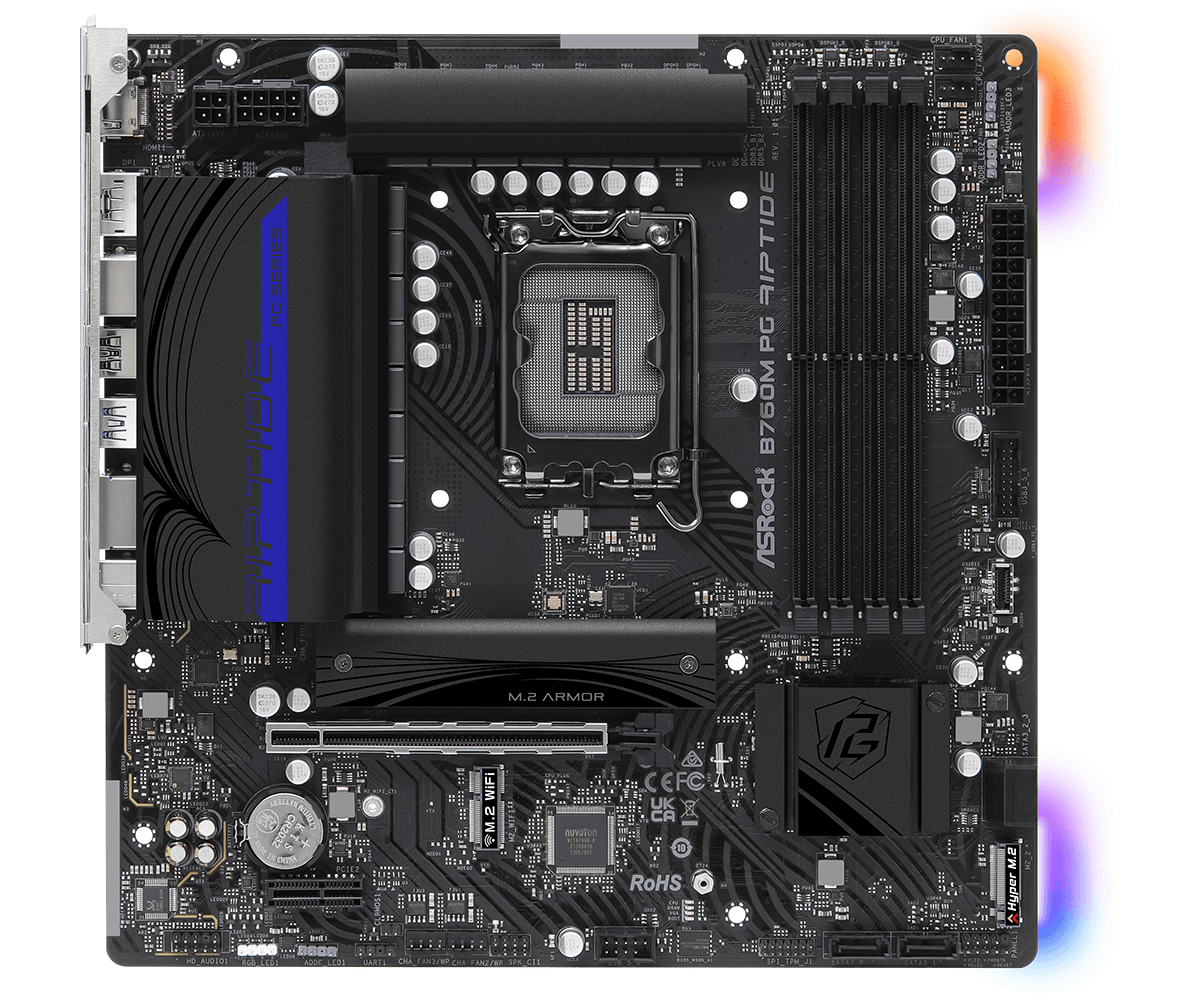

Desain

• Form Factor: Micro ATX (24.4 cm x 24.4 cm)

• Pre-Installed I/O Shield

• ASRock Post Status Checker (EZ Troubleshooter)

Prosesor

• Socket: LGA1700

• Support: Intel® Core™ 14th, 13th & 12th Gen

• Teknologi: Intel® Hybrid, Turbo Boost Max 3.0, Thermal Velocity Boost, Adaptive Boost

• Fitur Tambahan: ASRock Hyper BCLK Engine

Chipset

• Intel® B760

Memori

• Dual Channel DDR5

• 4 x DDR5 DIMM Slots, Non-ECC, Un-buffered

• Kapasitas Maksimal: 256GB

• Mendukung XMP 3.0

• Kecepatan: Hingga 7200+ MHz (OC)

Grafis

• Integrated Intel® Xe Graphics Architecture

• 1 x HDMI 2.1 (maks. 4K 60Hz)

• 1 x DisplayPort 1.4 (maks. 8K 60Hz / 5K 120Hz)

Audio

• 7.1 CH HD Audio (Realtek ALC897)

• Nahimic Audio

Konektivitas Jaringan

• 2.5 Gigabit LAN (Dragon RTL8125BG)

• Phantom Gaming LAN Software

• Smart Auto Adjust Bandwidth, User Priority Control

Slot Ekspansi

• 1 x PCIe 4.0 x16

• 1 x PCIe 4.0 x1

• 1 x M.2 Socket (Key E) untuk WiFi/BT Module

Penyimpanan

• 2 x Hyper M.2 PCIe Gen4x4 (64Gb/s) Slots

• 4 x SATA3 6Gb/s Ports

• Mendukung Intel® Volume Management Device (VMD)

• RAID 0, 1, 5, dan 10 Support

USB Ports

• Depan & Belakang:

  • 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)

  • 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)

  • 6 x USB 2.0 (4 Rear, 2 Front)

• Semua port USB dilengkapi proteksi ESD

Konektor Internal

• 1 x SPI TPM Header

• 1 x Chassis Intrusion Header

• 1 x RGB LED Header, 3 x Addressable LED Header

• 5 x Fan Connectors (CPU/Water Pump/Chassis)

• 1 x USB 3.2 Gen1 Header

• 1 x USB 2.0 Header

• 1 x Front Panel Type-C Header

• 24-pin ATX Power Connector, 8-pin + 4-pin 12V Power Connectors

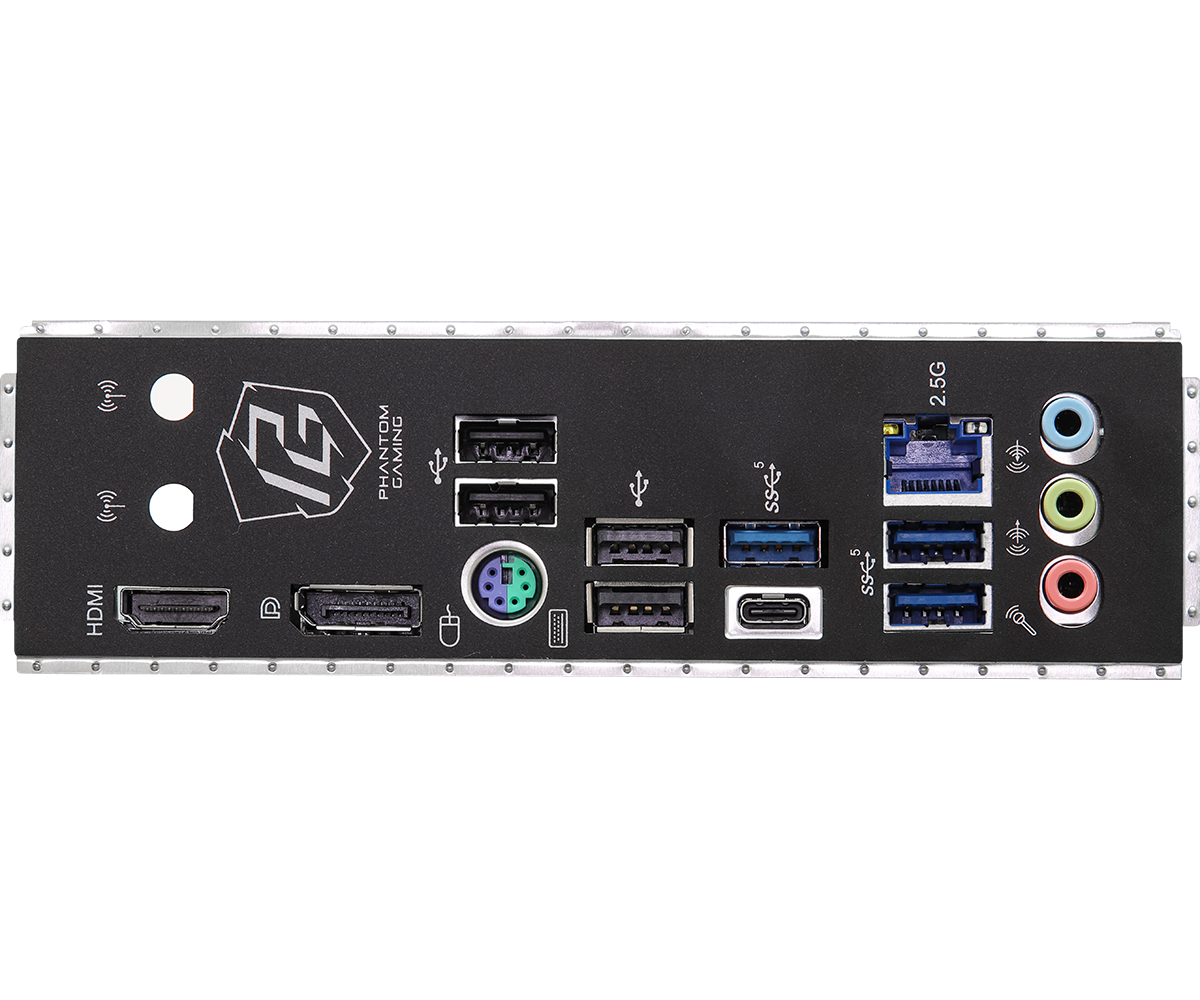

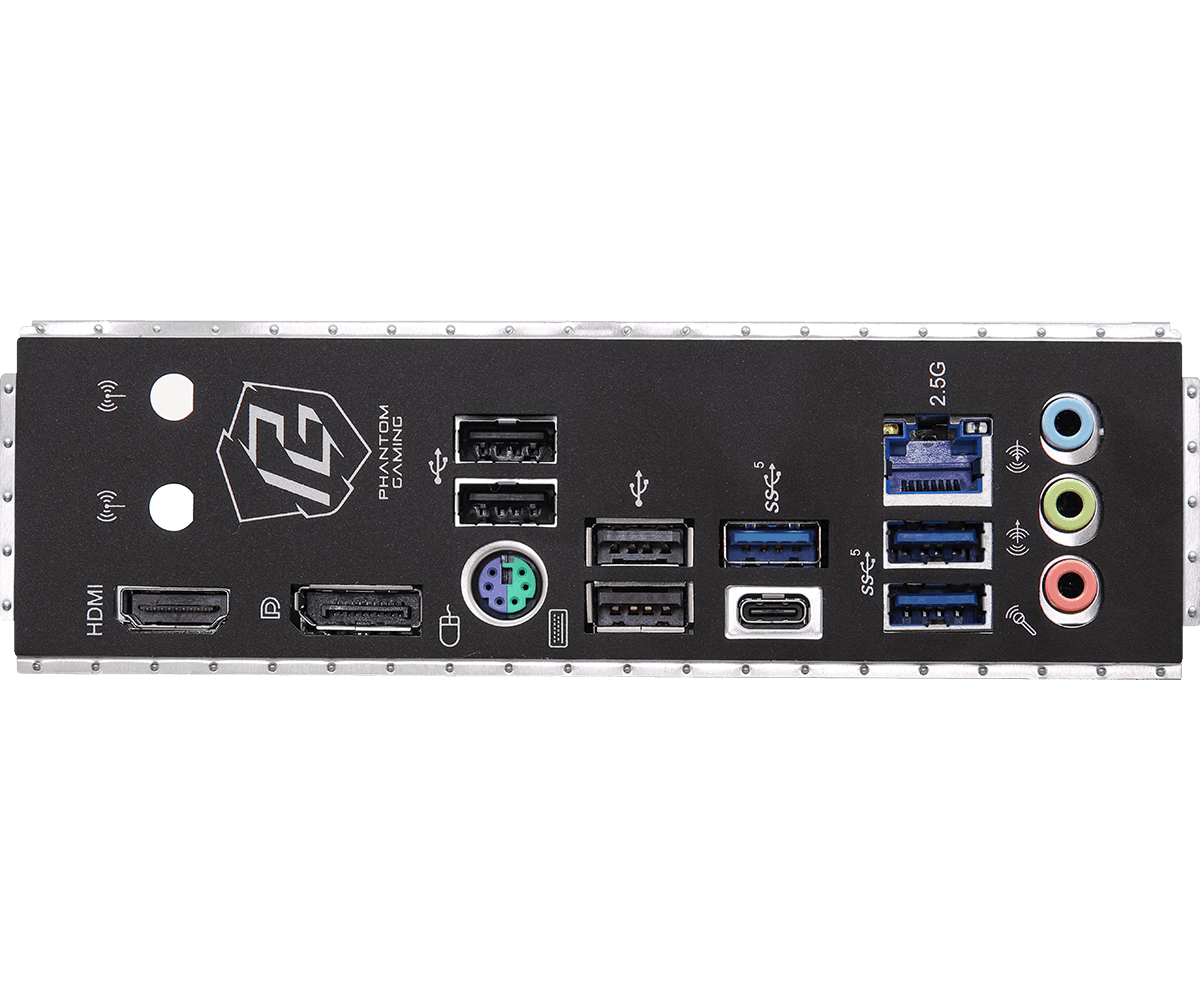

Rear I/O Panel

• 2 x Antenna Mount Points

• 1 x PS/2 Mouse/Keyboard Port

• 1 x HDMI Port

• 1 x DisplayPort

• 1 x USB 3.2 Gen1 Type-C

• 3 x USB 3.2 Gen1 Type-A

• 4 x USB 2.0

• 1 x RJ-45 LAN Port

• Audio Jacks (Line In / Front Speaker / Mic)

Software & BIOS

• ASRock Phantom Gaming Tuning Utility

• ASRock Polychrome SYNC

• ASRock EZ Mode & Full HD UEFI

• Auto Driver Installer, Instant Flash, Easy RAID Installer

Aksesori

• 1 x User Manual

• 2 x SATA Data Cables

• 2 x Screws for M.2 Installation

Sistem Operasi

• Microsoft Windows® 10 64-bit / 11 64-bit

Sertifikasi

• FCC, CE, ErP/EuP Ready
