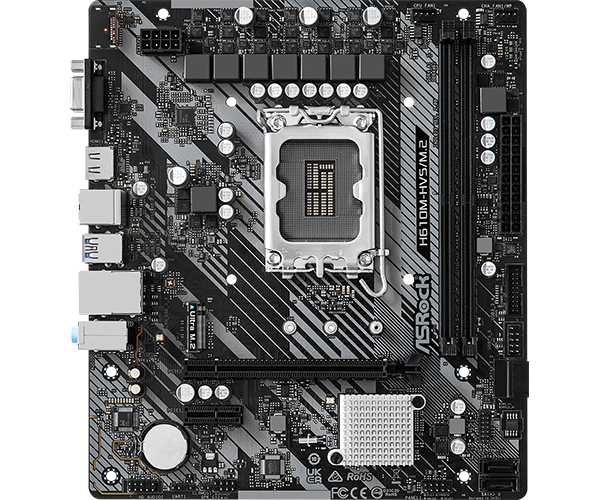

Spesifikasi

Desain

• Form Factor: Micro ATX (22.0 cm x 19.3 cm)

• Warna PCB: Sapphire Black

• Material: High Density Glass Fabric PCB

• Desain daya: 6+1+1 Power Phase

• Solid Capacitor Design

Kompatibilitas CPU

• Mendukung Intel® Core™ Generasi ke-12, ke-13, dan ke-14 (Socket LGA1700)

• Mendukung Intel® Hybrid Technology dan Turbo Boost Max 3.0

Chipset

• Intel® H610

Memori

• 2x Slot DDR4 DIMM, Dual Channel

• Kapasitas maksimal: 64GB

• Mendukung kecepatan hingga 3200MHz

• Mendukung ECC (non-ECC mode) dan XMP 2.0

Grafis

• Intel® Xe Graphics Architecture (Gen 12)

• Output ganda: HDMI 2.1 (hingga 4K @60Hz) & D-Sub (hingga 1920×1200 @60Hz)

• Mendukung HDCP 2.3

Audio

• 7.1 Channel HD Audio (Realtek ALC897)

• Proteksi lonjakan daya (Surge Protection)

Koneksi Jaringan

• Realtek RTL8111H Gigabit LAN (10/100/1000 Mb/s)

• Mendukung Wake-On-LAN, PXE, Energy Efficient Ethernet, ESD Protection

Slot Ekspansi

• 1 x PCIe 4.0 x16

• 1 x PCIe 3.0 x1

Penyimpanan

• 1 x Ultra M.2 (PCIe Gen3 x4, hingga 32 Gb/s, mendukung NVMe)

• 4 x SATA3 6.0 Gb/s

• Mendukung ASRock U.2 Kit

Konektivitas & Header

• 1 x Header USB 3.2 Gen1 (2 port)

• 1 x Header USB 2.0 (2 port)

• 1 x Front Panel Audio

• 1 x CPU Fan (4-pin)

• 1 x Chassis/Water Pump Fan (4-pin, Auto Detect)

• 1 x 24-pin ATX Power

• 1 x 8-pin 12V Power

• Header TPM & Speaker/Intrusion

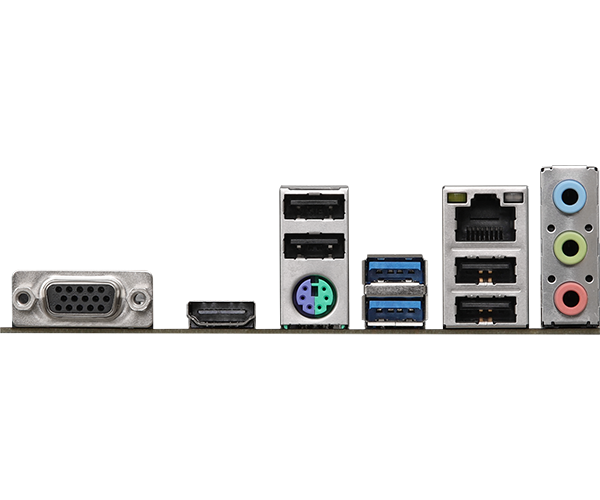

I/O Belakang

• 1 x PS/2 Mouse/Keyboard

• 1 x D-Sub

• 1 x HDMI

• 2 x USB 3.2 Gen1

• 4 x USB 2.0

• 1 x LAN RJ-45

• 3 x Audio Jacks (Line in / Speaker / Mic)

Fitur Khusus

• ASRock Super Alloy: Premium Power Choke, Sapphire PCB

• ASRock Full Spike Protection

• ASRock Ultra M.2

• ASRock Live Update & APP Shop

BIOS & Software

• 128Mb UEFI BIOS dengan GUI multibahasa

• Fitur tuning voltase lengkap

• Software: A-Tuning, EZ Mode UEFI, Full HD UEFI, My Favorites, Instant Flash

Monitoring

• Fan Tachometer & Multi-Speed Control

• CPU/Chassis Fan Auto Adjustment

• Voltage Monitoring lengkap

• Fitur Case Open Detection

Aksesoris

• I/O Shield

• 2 x Kabel SATA

• 1 x Sekrup M.2

Sistem Operasi

• Mendukung Windows® 10 & 11 64-bit

Sertifikasi

• FCC, CE, ErP/EuP Ready
