ENGINEERED FOR MODERN COMPONENT
SWith the ability to provide twice the total system power, 2.5 times the 12V CEM peak power, and three times the rated power of the 12V-2×6 cable for 0.1 ms, random power spikes will never be an issue. The PQ1000G will provide stable and consistent power for legacy and modern power-hungry PCs for the foreseeable future.

THE GOLD STANDARD
80 Plus Gold certified to meet a 92% high level of power efficiency under typical loads of 50%, while Cybenetics and PPLP also rates each PG650G unit as Gold as well.

TRUST-WORTHY STABILITY
Through the use of a premium full Japanese electrolytic capacitors, active PFC, half-bridge LLC, and a DC-to-DC topology, the PQ1000G can keep the hold-up time to ≥ 16 ms under a 100% full load—a higher standard than required to meet ATX3.1 compliance.

PCI-E 5.1 PERFECTION
Equipped with a high-grade sleeved 105C-resistant 16AWG copper-core 12V-2×6 cable, the PQ1000G provides up to 450W for modern GPUs.

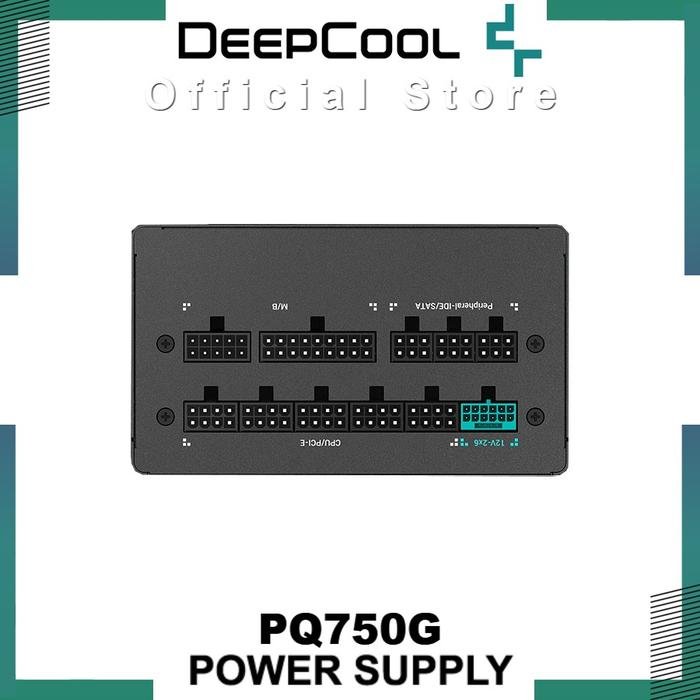

Main Power Connector 24 (20+4)Pin x1
CPU (4+4)Pin x2
PCI-E (6+2)Pin x2
PCI-E (6+2)Pin x2
12V-2×6 (16Pin) x1
SATA x 3 + 4Pin Peripheral x 3

Technical Spec
Total Output 750W
Type ATX12V V3.1
Product Dimensions 150x140x86mm (W x L x H)
Efficiency certification 80Plus Gold/Cybenetics PLATINUM/PPLP Gold
Fan Size 120x120x25mm (W x L x H)
Fan Bearing FDB (Fluid Dynamic Bearing)
Topology Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors Full Japanese Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms Full load
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature 0-40°C
Regulatory EAC
Erp Regulation ErP 2013
Environment Protection EAC
MTBF 100,000 Hours
