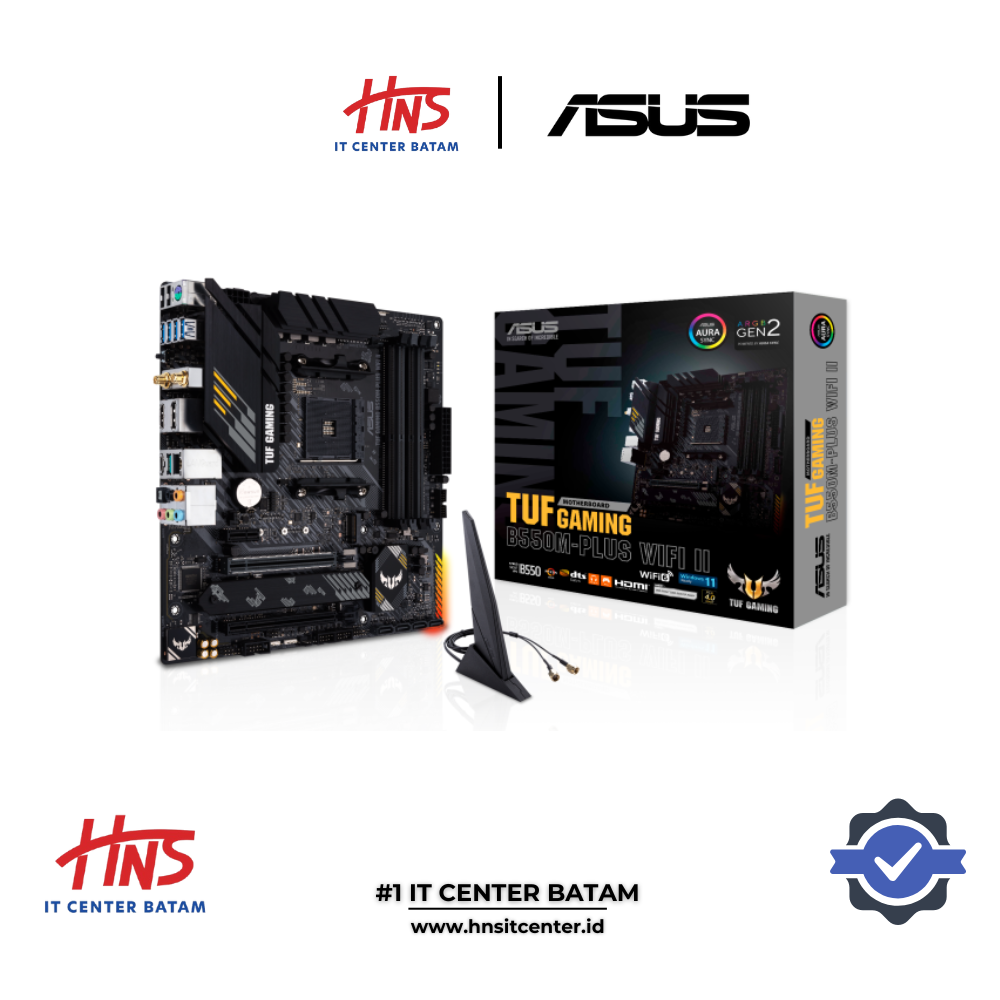

Spesifikasi dan Deskripsi Singkat Motherboard ASUS TUF GAMING B550M-PLUS WIFI II

Spesifikasi Utama:

• Model: TUF GAMING B550M-PLUS WIFI II
• CPU Support: AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series, dan 3000 Series
• Chipset: AMD B550
• Memori: 4 x DIMM DDR4, hingga 128GB (Dual Channel, hingga 4866 MHz OC)
• Grafik: 1x DisplayPort (4K@60Hz), 1x HDMI® (4K@60Hz)
• Slot Ekspansi: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4 mode), 1x PCIe 3.0 x1
• Penyimpanan: 2x M.2 (PCIe 4.0/3.0), 4x SATA 6Gb/s, mendukung RAID 0/1/10
• Konektivitas: Wi-Fi 6, Bluetooth 5.2, Ethernet 2.5Gb
• USB Ports: 8 port belakang (2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 2x USB 2.0), 6 port depan
• Audio: Realtek 7.1 Surround Sound, optical S/PDIF out
• Form Factor: micro-ATX (24.4 cm x 24.4 cm)

Fitur Khusus:

• TUF Protection: Perlindungan LANGuard, Overvoltage, ESD Guards, SafeSlot.
• Pendinginan: VRM heatsink, M.2 heatsink, dan 4 fan headers.
• RGB Lighting: 2x AURA RGB headers dan Addressable Gen 2 header.
• EZ DIY: BIOS FlashBack™, ASUS EZ Flash 3, Q-LED.
• Software: Armoury Crate, Two-Way AI Noise Cancellation, Fan Xpert 2+.
