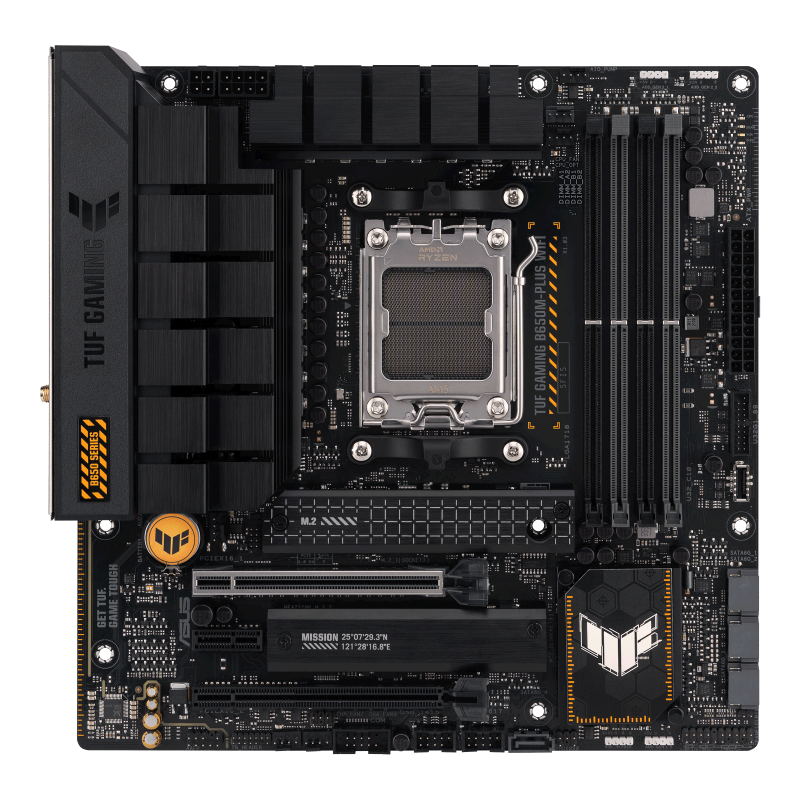

Spesifikasi

Desain

• Form Factor: micro-ATX (24.4 cm x 24.4 cm)

• Pre-mounted I/O Shield

• Stainless-Steel Back I/O

Chipset & CPU Support

• Chipset: AMD B650

• Soket: AMD AM5

• Kompatibel: AMD Ryzen 9000, 8000, dan 7000 Series

Memori

• 4 x DIMM DDR5, hingga 192GB

• Dukungan kecepatan hingga DDR5 7600+(OC)

• Dual Channel Architecture

• Mendukung AMD EXPO™

• OptiMem II Technology

Grafis

• 1 x DisplayPort (max 8K@60Hz)

• 1 x HDMI 2.1 Port (4K@60Hz)

Slot Ekspansi

• 1 x PCIe 4.0 x16 slot (Ryzen 9000 & 7000)

• 1 x PCIe 4.0 x16 slot (x8/x4, Ryzen 8000)

• 1 x PCIe 4.0 x1 slot

Penyimpanan

• 2 x M.2 Slot (PCIe 5.0 x4 dan PCIe 4.0 x4)

• 4 x SATA 6Gb/s Ports

• Support NVMe RAID 0/1/10 dan SATA RAID 0/1/10

Koneksi Jaringan

• Ethernet: Realtek 2.5Gb LAN + TUF LANGuard

• Wireless: Wi-Fi 6 (2×2, Dual Band)

• Bluetooth 5.2

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

• Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Premium audio capacitors & Audio Shielding

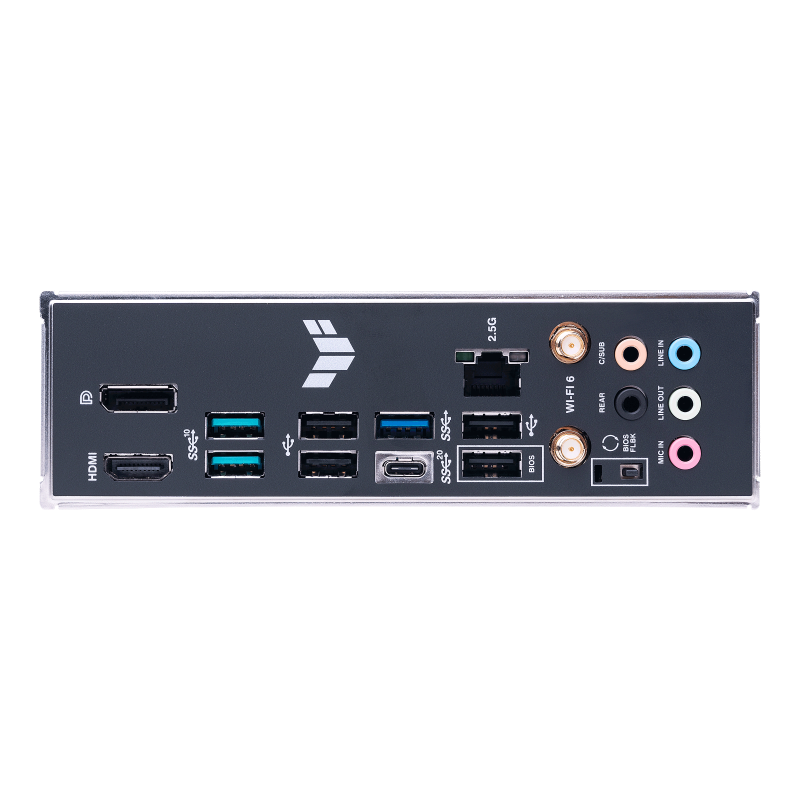

USB Ports

• Rear: 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A

• Front: 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1, 4 x USB 2.0

Pendinginan

• 1 x 4-pin CPU Fan Header

• 1 x 4-pin CPU OPT Fan Header

• 1 x 4-pin AIO Pump Header

• 3 x 4-pin Chassis Fan Headers

• M.2 Heatsink & VRM Heatsink

Fitur Khusus

• ASUS TUF Protection (ESD Guards, SafeSlot Core+, Overvoltage Protection)

• Q-Design (M.2 Q-Latch, Q-LED, Q-DIMM, Q-Slot)

• Aura Sync RGB (1 x Aura RGB Header, 3 x Addressable Gen 2 Headers)

• BIOS FlashBack™ Support

Software Pendukung

• Armoury Crate (Aura Sync, Fan Xpert 2+, Two-Way AI Noise Cancellation)

• AI Suite 3 (TurboV EVO, DIGI+ VRM)

• DTS Audio Processing

• Norton Anti-virus (Trial)

• MyASUS

• WinRAR

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Support ASUS CrashFree BIOS 3 dan EZ Flash 3

Sistem Operasi

• Windows 11 / Windows 10 64-bit
