Spesifikasi

Model

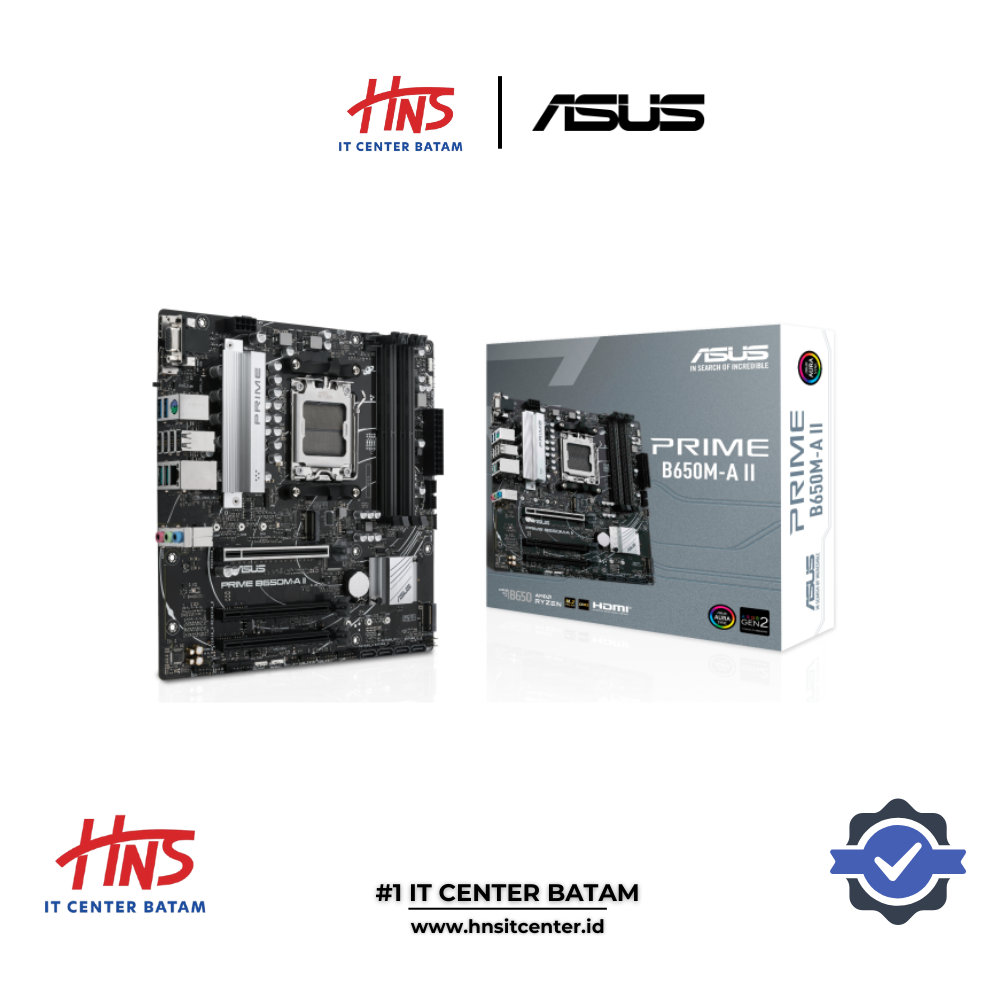

• PRIME B650M-A II

CPU

• AMD Socket AM5
• Mendukung AMD Ryzen™ 9000, 8000, dan 7000 Series

Chipset

• AMD B650

Memori

• 4 x DIMM, Maks. 192GB, DDR5
• Mendukung kecepatan hingga DDR5 7600+(OC)
• Dual Channel Memory Architecture
• Dukungan AMD EXPO™ dan OptiMem II

Grafis

• 1 x DisplayPort (Maks. 8K@60Hz)
• 1 x VGA Port
• 1 x HDMI® (Maks. 4K@60Hz)

Slot Ekspansi

• 1 x PCIe 4.0 x16 (Mode x16) untuk Ryzen™ 9000 & 7000
• 1 x PCIe 4.0 x16 (Mode x8/x4) untuk Ryzen™ 8000
• 2 x PCIe 4.0 x16 (Mode x1) dari chipset B650

Penyimpanan

• 2 x M.2 (1x PCIe 5.0, 1x PCIe 4.0)
• 4 x SATA 6Gb/s
• Dukungan RAID 0/1/10

Jaringan

• Realtek 2.5Gb Ethernet

USB

Port Belakang (Total 8 Port)

• 2 x USB 3.2 Gen 2 (Type-A)
• 2 x USB 3.2 Gen 1 (Type-A)
• 4 x USB 2.0 (Type-A)

Port Depan (Total 7 Port)

• 1 x USB 3.2 Gen 1 (Type-C)
• 1 x USB 3.2 Gen 1 header (2 Port)
• 2 x USB 2.0 header (4 Port)

Audio

• Realtek 7.1 Surround Sound HD Audio CODEC
• Dukungan Jack-detection, Multi-streaming, dan Jack-retasking
• Audio Shielding & Premium Audio Capacitors

Panel I/O Belakang

• 2 x USB 3.2 Gen 2 (Type-A)
• 2 x USB 3.2 Gen 1 (Type-A)
• 4 x USB 2.0 (Type-A)
• 1 x DisplayPort, 1 x VGA, 1 x HDMI®
• 1 x Realtek 2.5Gb Ethernet
• 3 x Audio Jacks
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse Combo Port

Konektor Internal

Pendingin & Kipas

• 1 x 4-pin CPU Fan
• 1 x 4-pin CPU OPT Fan
• 3 x 4-pin Chassis Fan

Penyimpanan

• 2 x M.2 Slots
• 4 x SATA 6Gb/s

USB

• 1 x USB 3.2 Gen 1 (Type-C)
• 1 x USB 3.2 Gen 1 header (2 Port)
• 2 x USB 2.0 header (4 Port)

Fitur Khusus

ASUS 5X Protection III

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O

ASUS Q-Design

• Q-DIMM, Q-LED Core, Q-Slot

ASUS Thermal Solution

• VRM Heatsink Design

ASUS EZ DIY

• BIOS FlashBack™ Button & LED

Aura Sync

• Aura RGB Header
• Addressable Gen 2 Headers

Perangkat Lunak & BIOS

• Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+)
• AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner)
• ASUS CPU-Z, Norton Antivirus (Trial), WinRAR
• ASUS EZ DIY BIOS (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode)

Sistem Operasi yang Didukung

• Windows® 11, Windows® 10 64-bit

Form Factor

• micro-ATX (24.4 cm x 24.4 cm)
