ASRock Super Alloy
– High Density Glass Fabric PCB
– Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

– Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
– 6 Power Phase design
– Supports CPU up to 105W

– AMD Promontory B450

– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– Max. capacity of system memory: 64GB*
– Supports Extreme Memory Profile (XMP) memory modules
– 15μ Gold Contact in DIMM Slots

– 128Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment

– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with DVI-D and HDMI Ports
– Supports 4K Ultra HD (UHD) playback with HDMI Port

– 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
– Supports Surge Protection

– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*

– 1 x PCI Express 2.0 x1 Slot

– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)*

– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)**
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

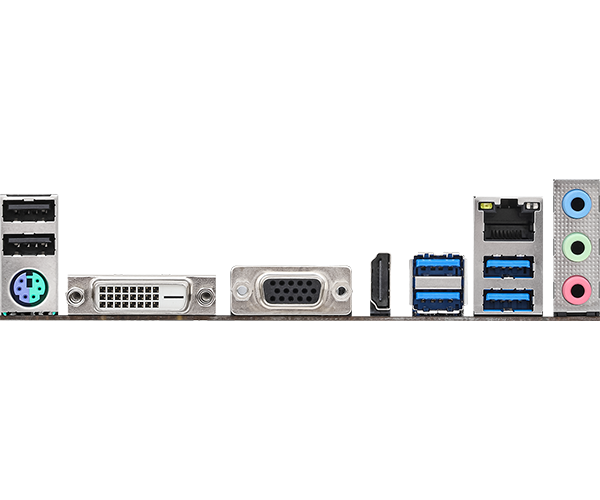

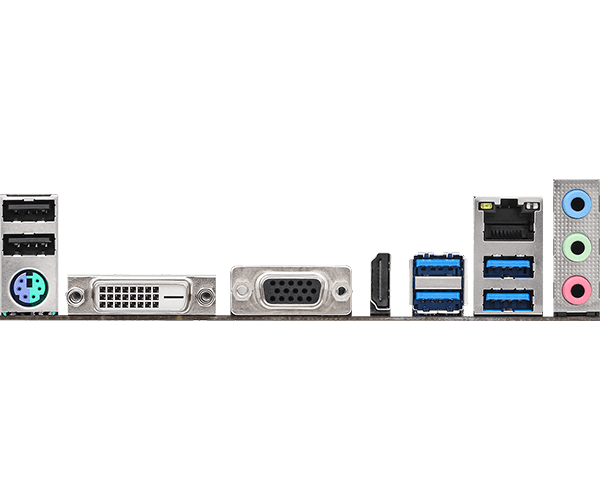

– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software
– ASRock A-Tuning
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer

– I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket

– CPU/Chassis temperature sensing
– CPU/Chassis Fan Tachometer
– CPU/Chassis Quiet Fan
– CPU/Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore

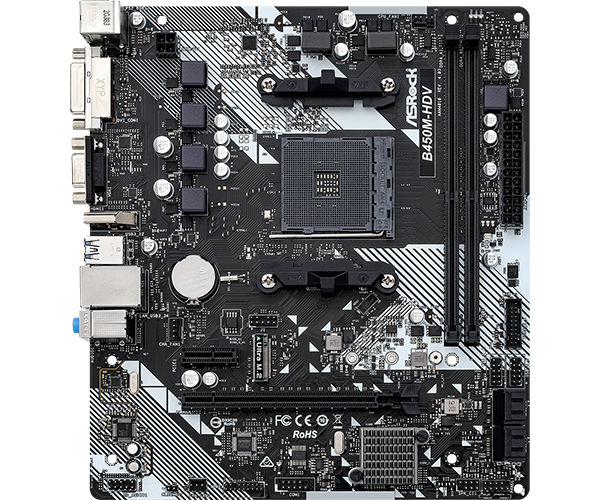

– Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
– Solid Capacitor design

– Microsoft Windows^® 10 64-bit / 11 64-bit*

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
