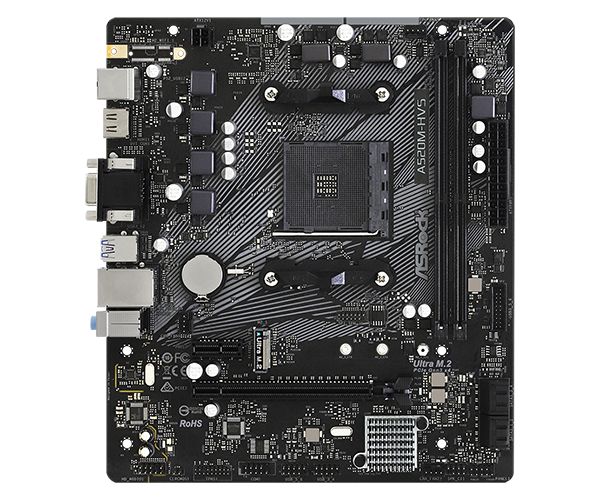

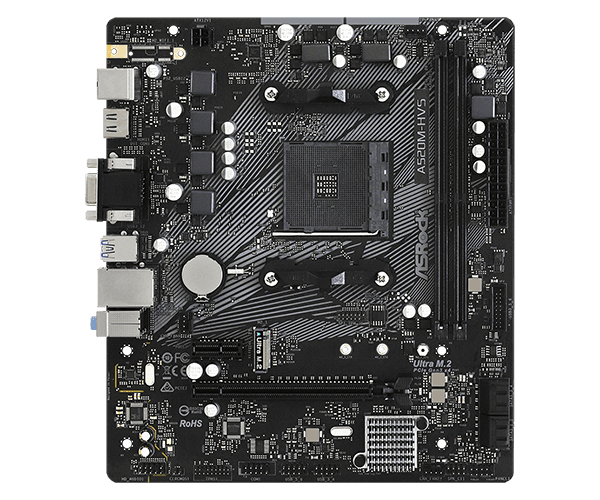

Spesifikasi

Desain

• Form Factor: Micro ATX (23.0 cm x 20.1 cm)

• PCB: Sapphire Black dengan High Density Glass Fabric

• Desain Daya: 6 Power Phase

• Komponen: Solid Capacitor, Premium 50A Power Choke

Chipset & Prosesor

• Chipset: AMD A520

• Soket: AM4

• Dukungan Prosesor: Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 & 5000 G-Series

• Fitur Tambahan: ASRock Super Alloy, Full Spike Protection, Live Update & APP Shop

Memori

• Tipe: DDR4 Dual Channel, ECC & Non-ECC, Un-buffered

• Slot: 2 x DIMM, hingga 64GB

• Kecepatan Maksimum: Hingga 4733+ MHz (OC) tergantung seri CPU/APU

• Fitur: 15μ Gold Contact, XMP Support

Grafis

• GPU Terintegrasi: Radeon™ Vega Series (pada APU Ryzen)

• Output: HDMI 2.1 (4K @60Hz), D-Sub (1920×1200 @60Hz)

• Fitur Tambahan: HDR, HDCP 2.3, Auto Lip Sync, 16GB Shared Memory Maksimal

Audio

• Codec: Realtek ALC887/897

• Channel: 7.1 CH HD Audio

• Perlindungan: Surge Protection

Koneksi & Jaringan

• LAN: Gigabit LAN (Realtek RTL8111H)

• Fitur: Wake-On-LAN, ESD Protection, PXE, Energy Efficient Ethernet

Slot Ekspansi

• 1 x PCIe 3.0 x16

• 1 x PCIe 3.0 x1

• Dukungan NVMe SSD sebagai boot disk

Penyimpanan

• 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)

• 4 x SATA3 6Gb/s

• RAID 0, 1, 10 (untuk SATA)

• Dukungan ASRock U.2 Kit

Konektivitas Internal

• Header USB: 2 x USB 2.0 (4 port), 1 x USB 3.2 Gen1 (2 port)

• Power: 1 x 24-pin ATX, 1 x 4-pin 12V

• Header Lain: TPM, COM, CPU/Chassis Fan, Audio Front Panel, Chassis Intrusion

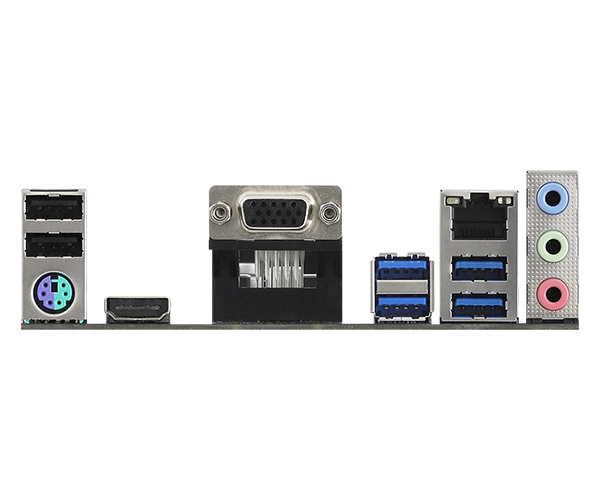

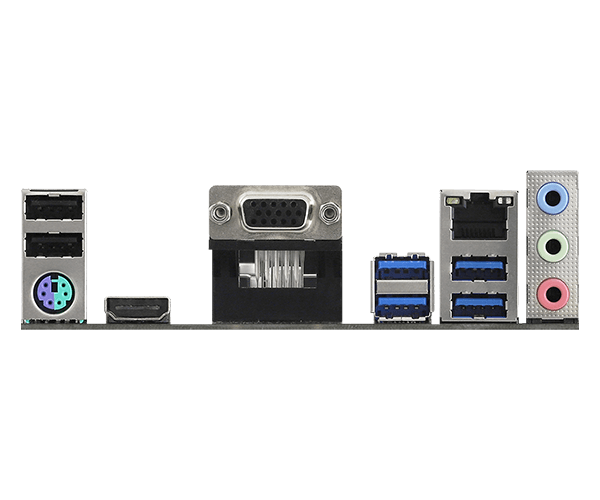

I/O Belakang

• 1 x PS/2 Mouse/Keyboard

• 1 x HDMI, 1 x D-Sub

• 4 x USB 3.2 Gen1, 2 x USB 2.0

• 1 x RJ-45 LAN

• 3 x Audio Jacks

BIOS & Fitur Khusus

• 128Mb AMI UEFI Legal BIOS

• GUI BIOS, Plug & Play, ACPI 5.1

• ASRock UEFI Full HD, Instant Flash

• Monitoring: CPU & Chassis Fan, Suhu, Tegangan, Case Open Detection

Sistem Operasi & Sertifikasi

• Kompatibel: Windows 10 / 11 64-bit

• Sertifikasi: FCC, CE, ErP/EuP ready
