Spesifikasi

Kompatibilitas CPU

• Soket: AMD AM4

• Chipset: AMD B550

• Dukungan Prosesor:

  • AMD Ryzen™ 5000 Series

  • Ryzen™ 5000 G-Series

  • Ryzen™ 4000 G-Series

  • Ryzen™ 3000 Series & 3000 G-Series

Memori

• 4 x DDR4 DIMM (maks. 128 GB)

• Kecepatan hingga DDR4 4733 MHz (OC)

• Arsitektur dual-channel

• Dukungan ECC & non-ECC Unbuffered DIMM (tergantung CPU)

• Dukungan XMP

Grafis Onboard (dengan APU Ryzen)

• 1 x DisplayPort (maks. 5120×2880 @60Hz)

• 1 x HDMI 2.1 (maks. 4096×2160 @60Hz)

• Maks. shared memory: 16 GB

Audio

• Realtek® Audio CODEC

• Dukungan hingga 7.1-channel HD Audio

Jaringan

• Realtek® GbE LAN (1 Gbps)

Slot Ekspansi

• 1 x PCIe x16:

  • Ryzen 5000/3000: PCIe 4.0 x16

  • Ryzen G-Series: PCIe 3.0 x16

• 1 x PCIe x1: PCIe 3.0

Penyimpanan

• 2 x M.2 Socket 3 (M-Key, 2280):

  • M2A_CPU: PCIe 4.0/3.0 x4/x2 (tergantung CPU)

  • M2B_SB: PCIe 3.0 x2

• 4 x SATA 6Gb/s

• Dukungan RAID 0, 1, 10

USB Ports

• Back Panel:

  • 4 x USB 3.2 Gen 1

  • 4 x USB 2.0

• Internal Header:

  • 2 x USB 3.2 Gen 1

  • 2 x USB 2.0

Konektor Internal

• 1 x 24-pin ATX power

• 1 x 8-pin ATX 12V

• 1 x Header CPU Fan

• 1 x Header System Fan

• 1 x TPM Header

• Header Front Panel, Audio, USB

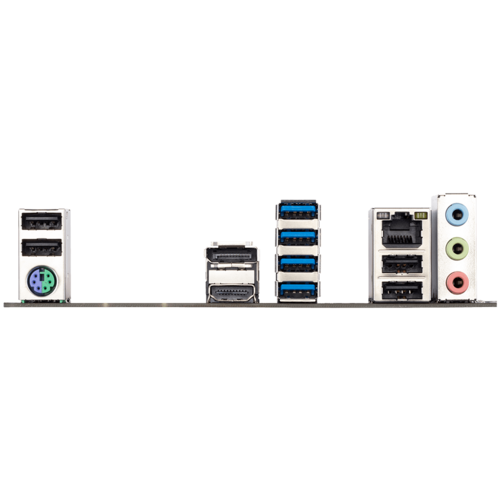

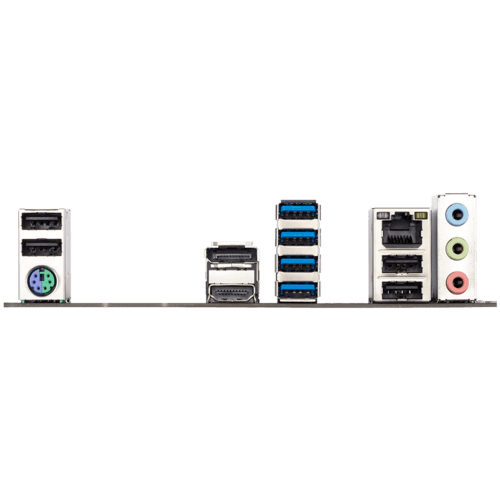

Back Panel I/O

• 1 x PS/2

• 1 x DisplayPort

• 1 x HDMI

• 4 x USB 3.2 Gen 1

• 4 x USB 2.0

• 1 x RJ-45

• 3 x Audio Jack

Fitur Tambahan

• Q-Flash, EasyTune, Smart Backup

• BIOS: 128 Mbit AMI UEFI BIOS

• OS: Windows 10/11 64-bit

• Form Factor: Micro-ATX (24.4cm x 24.4cm)
