Spesifikasi

Desain

• Form Factor: Micro ATX (24.4cm x 19.5cm)
• Slot Ekspansi: 1x PCIe 3.0 x16, 1x PCIe 2.0 x1
• Konektor Internal: 1x 24-pin ATX, 1x 8-pin 12V, 1x CPU fan, 1x system fan, 1x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen 1, 2x USB 2.0

Prosesor & Chipset

• Socket: AM4 (Ryzen™ 5000/4000/3000/2000/1000 Series, Athlon™ Vega)
• Chipset: AMD B450

Memori

• Tipe: DDR4 (hingga 64GB)
• Kecepatan: 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz
• Slot: 2x DIMM (Dual Channel)
• Dukungan: ECC/non-ECC, XMP

Grafik & Display

• Grafik Integrasi: HDMI 2.0 (4096×2160@60Hz, HDCP 2.2)
• Memori Shared: Hingga 16GB

Penyimpanan

• M.2: 1x slot (PCIe 3.0 x4/x2 & SATA, 22110/2280/2260/2242)
• SATA: 4x port 6Gb/s (RAID 0/1/10)

Audio & Jaringan

• Audio: Realtek® HD Audio (7.1-channel)
• LAN: Realtek® GbE (1Gbps)

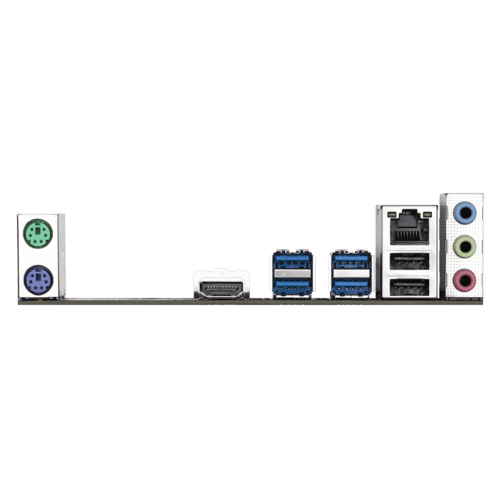

Port I/O Belakang

• USB: 4x USB 3.2 Gen 1, 2x USB 2.0
• Display: 1x HDMI
• Lainnya: 1x RJ-45, 3x audio jack, PS/2 (keyboard & mouse)

Fitur Tambahan

• BIOS: 128Mb AMI UEFI (Q-Flash, Xpress Install)
• Software: APP Center (EasyTune, @BIOS, Norton® OEM)
• Sistem Operasi: Windows 11/10/7 64-bit

Pendinginan & Monitoring

• Kontrol Fan: Deteksi suhu, kecepatan, dan peringatan kegagalan
