Spesifikasi

Desain

• Form Factor: mATX (24.4 cm x 24.4 cm)
• Warna: Hitam dengan aksen khas TUF Gaming
• Material: Stainless-Steel Back I/O untuk ketahanan lebih baik

Chipset & CPU

• Chipset: Intel® B860
• Soket: LGA1851
• Dukungan CPU: Intel® Core™ Ultra (Series 2)
• Teknologi Turbo Boost 2.0 & Turbo Boost Max 3.0

Memori

• 4 Slot DIMM, hingga 256GB DDR5
• Kecepatan hingga 8800+MT/s (OC)
• Dukungan XMP & ASUS AEMP III
• Arsitektur Dual Channel

Grafis

• 1 x DisplayPort 1.4 (4K @60Hz)
• 1 x HDMI 2.1 (4K @60Hz)
• 1 x USB Type-C dengan DisplayPort Alt Mode

Penyimpanan

• 3 Slot M.2:
  • 1 x M.2 PCIe 5.0 x4 (Key M, 2280)
  • 2 x M.2 PCIe 4.0 x4 (Key M, 2280)
• 4 Port SATA 6Gb/s
• Dukungan RAID 0/1/5/10

Konektivitas

• Ethernet: Realtek 2.5Gb LAN + TUF LANGuard
• Wi-Fi 7 (2×2, hingga 2.9Gbps, mendukung 2.4/5/6GHz)
• Bluetooth 5.4

Ekspansi

• 1 x PCIe 5.0 x16
• 1 x PCIe 4.0 x4

USB

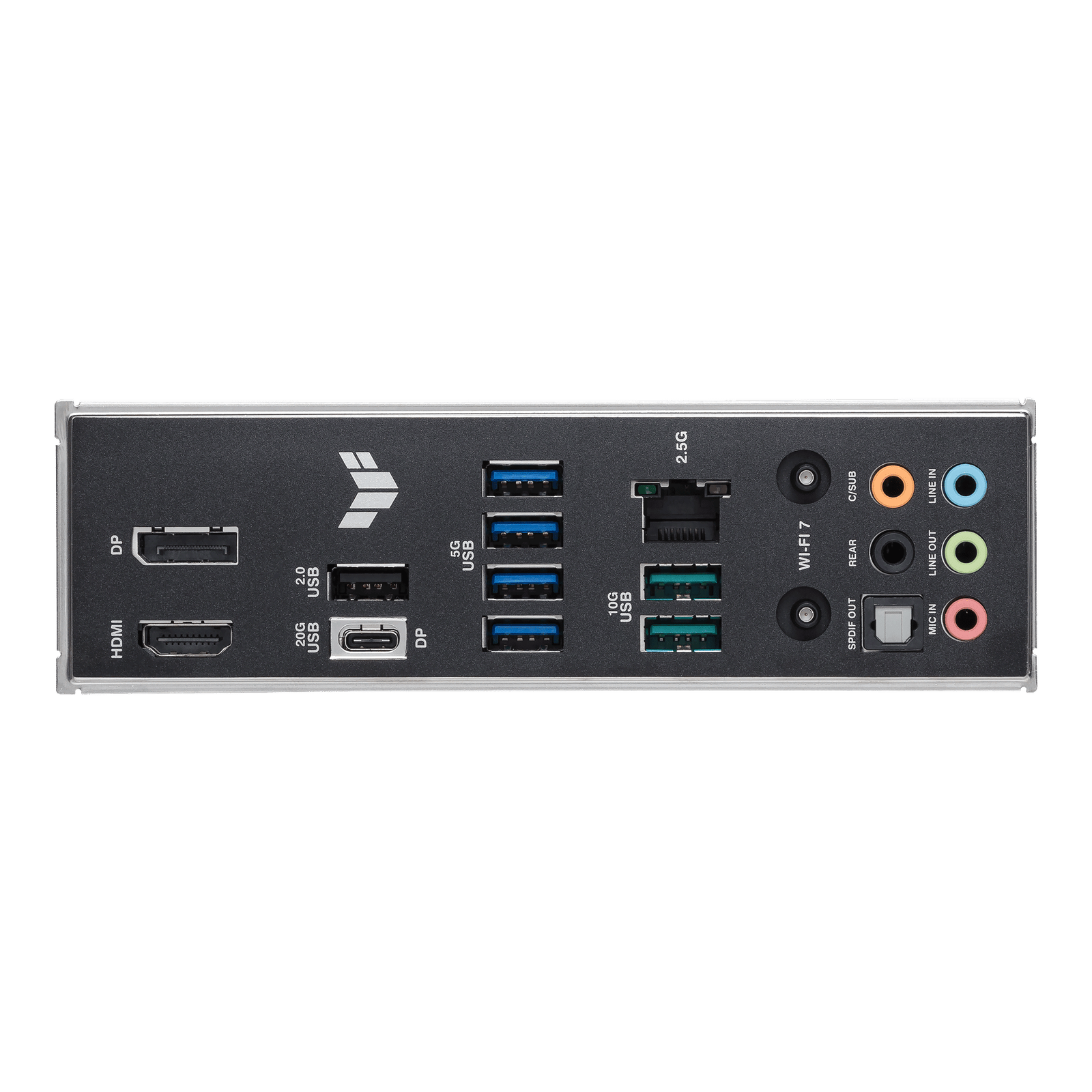

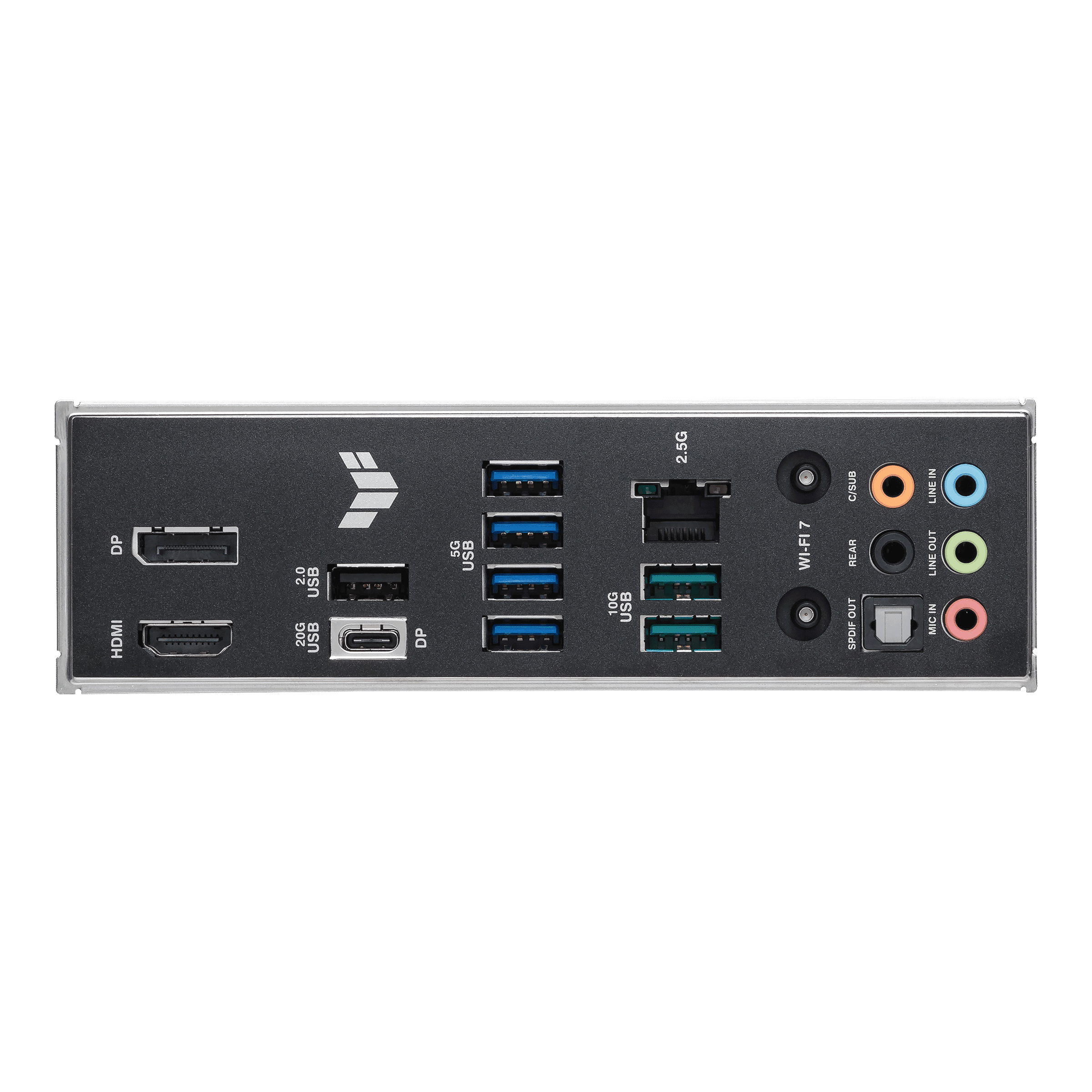

• Panel Belakang (8 Port):
  • 1 x USB 20Gbps (Type-C)
  • 2 x USB 10Gbps (Type-A)
  • 4 x USB 5Gbps (Type-A)
  • 1 x USB 2.0 (Type-A)
• Panel Depan (5 Port):
  • 1 x USB 10Gbps (Type-C)
  • 1 x USB 5Gbps header (2 port tambahan)
  • 1 x USB 2.0 header (2 port tambahan)

Audio

• Realtek 7.1 HD Audio CODEC
• Jack-detection, Multi-streaming, Jack-retasking
• Mendukung playback hingga 24-Bit/192 kHz
• Audio Shielding & Premium Capacitors
• Optical S/PDIF Out

Fitur Khusus

• TUF Protection: Overvoltage Protection, ESD Guard, SafeSlot
• ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED
• ASUS Thermal Solution: VRM Heatsink, M.2 Heatsink
• ASUS EZ DIY: Pre-mounted I/O Shield, SafeDIMM

AURA Sync

• 3 x Addressable Gen 2 Header
• RGB Lighting Customization

BIOS & Software

• UEFI BIOS (2 x 128Mb Flash ROM)
• Armoury Crate: Fan Xpert 2+, AURA Sync
• TurboV Core, ASUS DriverHub, TUF GAMING CPU-Z
• DTS Audio Processing

Aksesoris

• 2 x SATA 6Gb/s kabel
• 1 x Wi-Fi Q-Antenna
• 2 x M.2 Rubber Package
• 1 x Stiker TUF Gaming
• 1 x Paket sekrup M.2
• 1 x Quick Start Guide
