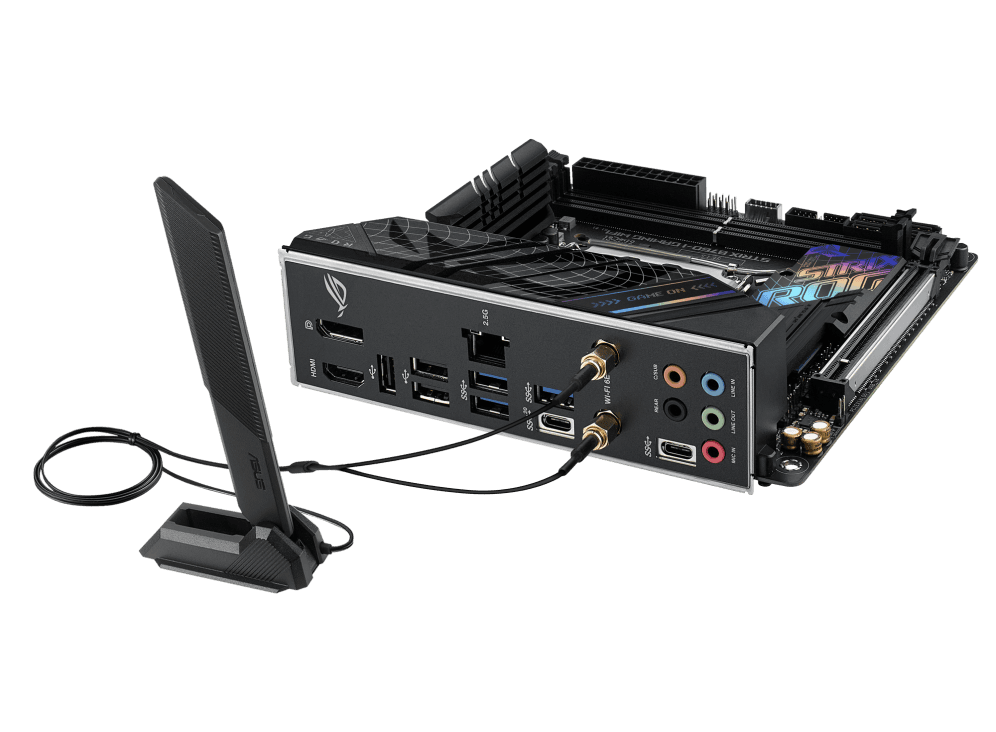

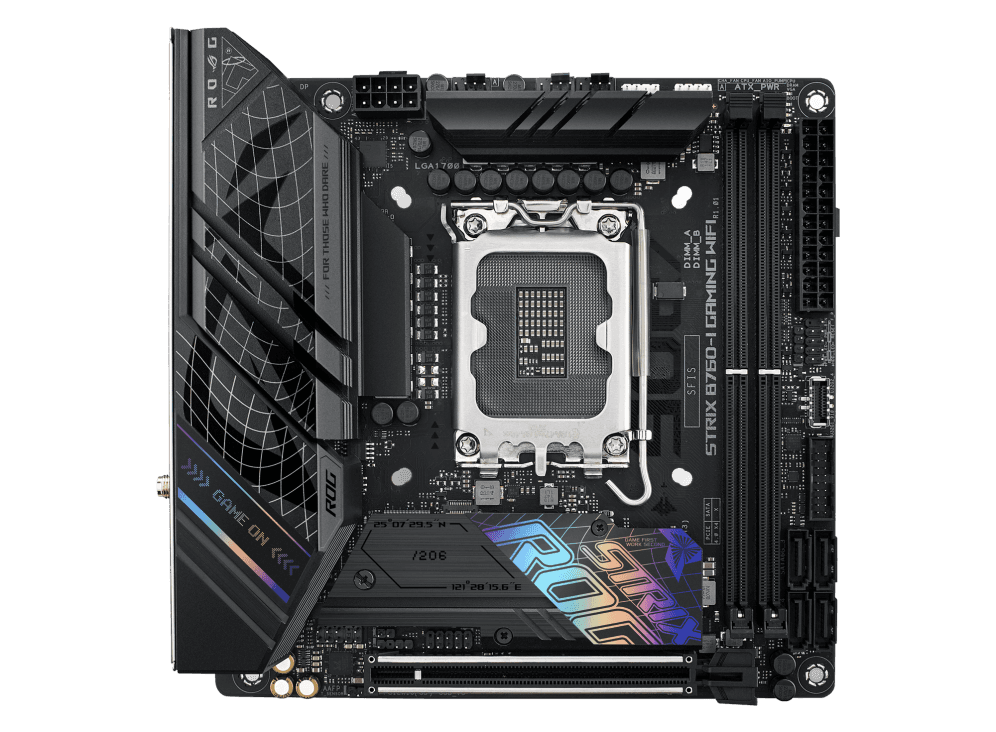

MOTHERBOARD ASUS ROG STRIX B760-I GAMING WIFI DDR5 LGA1700 - mITX

Spesifikasi

CPU & Chipset

• Socket: LGA 1700
• Dukungan CPU: Intel Core 14th, 13th, dan 12th Gen, Pentium Gold, dan Celeron
• Chipset: Intel B760

Memori (RAM)

• Slot RAM: 2x DIMM DDR5
• Kapasitas Maksimal: 96GB
• Kecepatan RAM:
  • OC: 7600MT/s, 7466MT/s, 7200MT/s, 7000MT/s, 6800MT/s, 6600MT/s, 6400MT/s, 6200MT/s, 6000MT/s, 5800MT/s
  • Standar: 5600MT/s, 5400MT/s, 5200MT/s, 5000MT/s, 4800MT/s
• Fitur:
  • Dual Channel Memory
  • Intel® XMP (Extreme Memory Profile)
  • OptiMem II untuk sinyal memori lebih stabil

Grafis (Onboard)

• Port Video:
  • 1 x HDMI 2.1 (4K@60Hz)
  • 1 x DisplayPort 1.4 (4K@60Hz)
• Catatan: Spesifikasi grafis tergantung pada prosesor yang digunakan

Slot Ekspansi

• 1 x PCIe 5.0 x16 (untuk GPU)

Penyimpanan (Storage)

• M.2 Slots: 2x M.2
  • M.2_1 (PCIe 4.0 x4, ukuran 2260/2280)
  • M.2_2 (PCIe 4.0 x4, ukuran 2242/2260/2280)
• SATA Ports: 4x SATA 6Gb/s
• Dukungan RAID: RAID 0/1/5/10

Jaringan & Konektivitas

• Ethernet: Intel 2.5Gb Ethernet + ASUS LANGuard
• Wi-Fi: Wi-Fi 6E (802.11ax, 2x2 MU-MIMO, 2.4/5/6GHz)
• Bluetooth: Bluetooth v5.3

USB Ports

Back Panel USB (8 Port)

• 1 x USB 3.2 Gen 2x2 Type-C
• 4 x USB 3.2 Gen 1 (3 x Type-A, 1 x Type-C)
• 3 x USB 2.0 Type-A

Front Panel USB (5 Port)

• 1 x USB 3.2 Gen 2 Type-C header
• 1 x USB 3.2 Gen 1 header (2 port tambahan)
• 1 x USB 2.0 header (2 port tambahan)

Audio

• ROG SupremeFX 7.1-Channel HD Audio Codec S1220A
• DTS® Sound Unbound
• Amplifier Savitech SV3H712
• Premium Audio Capacitors

Sistem Pendinginan & Kipas

• 1 x 4-pin CPU Fan Header
• 1 x 4-pin Chassis Fan Header
• 1 x 4-pin AIO Pump Header

Fitur Khusus

• M.2 Q-Latch (pemasangan SSD tanpa baut)
• Q-LED (indikator masalah CPU, RAM, VGA, Boot)
• SafeSlot & SafeDIMM (slot PCIe dan RAM lebih kuat)
• Aura Sync RGB & Addressable Gen 2 Header

Form Factor & Dimensi

• Form Factor: Mini-ITX (17cm x 17cm)

Sistem Operasi

• Windows 10 & 11 64-bit
