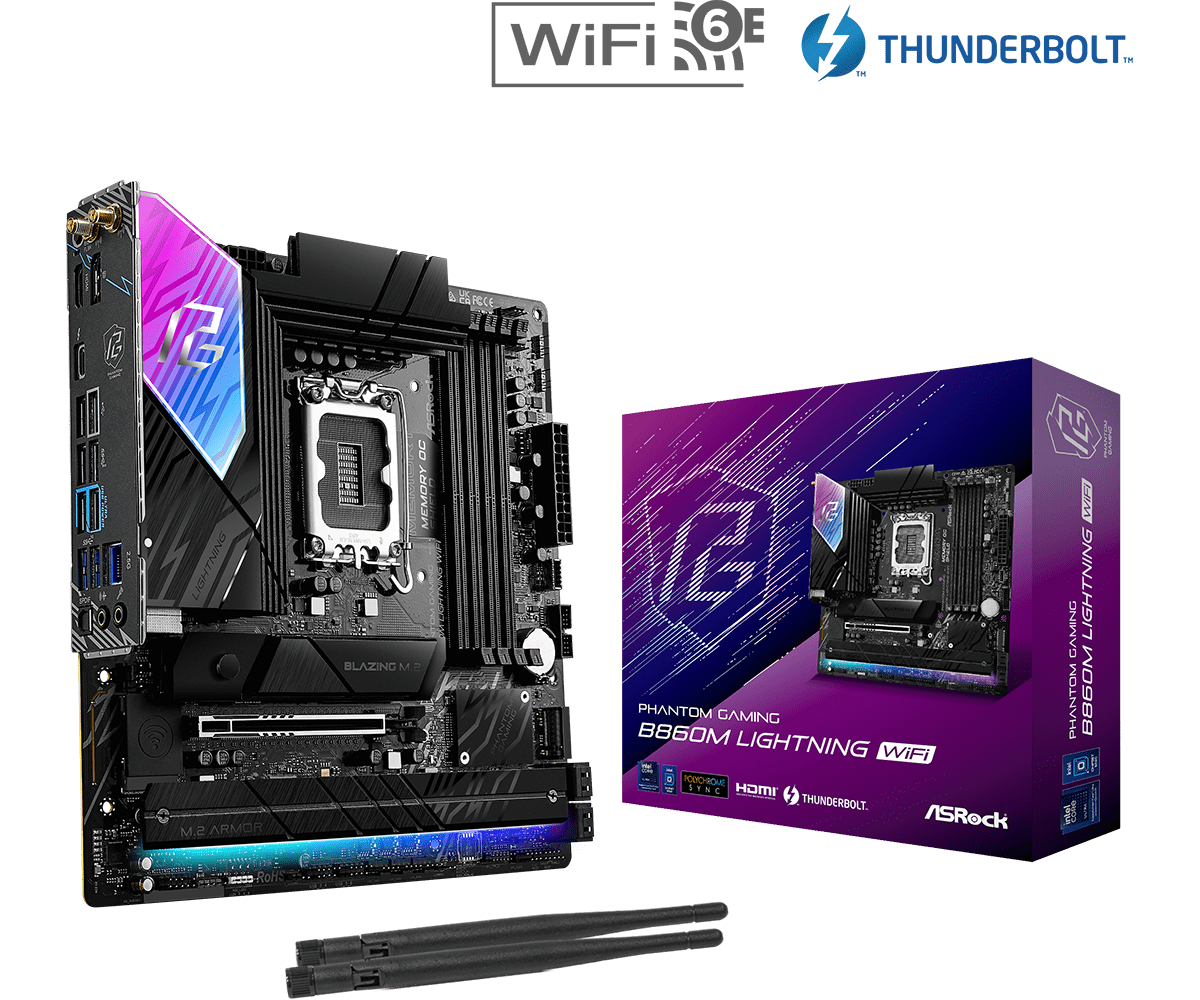

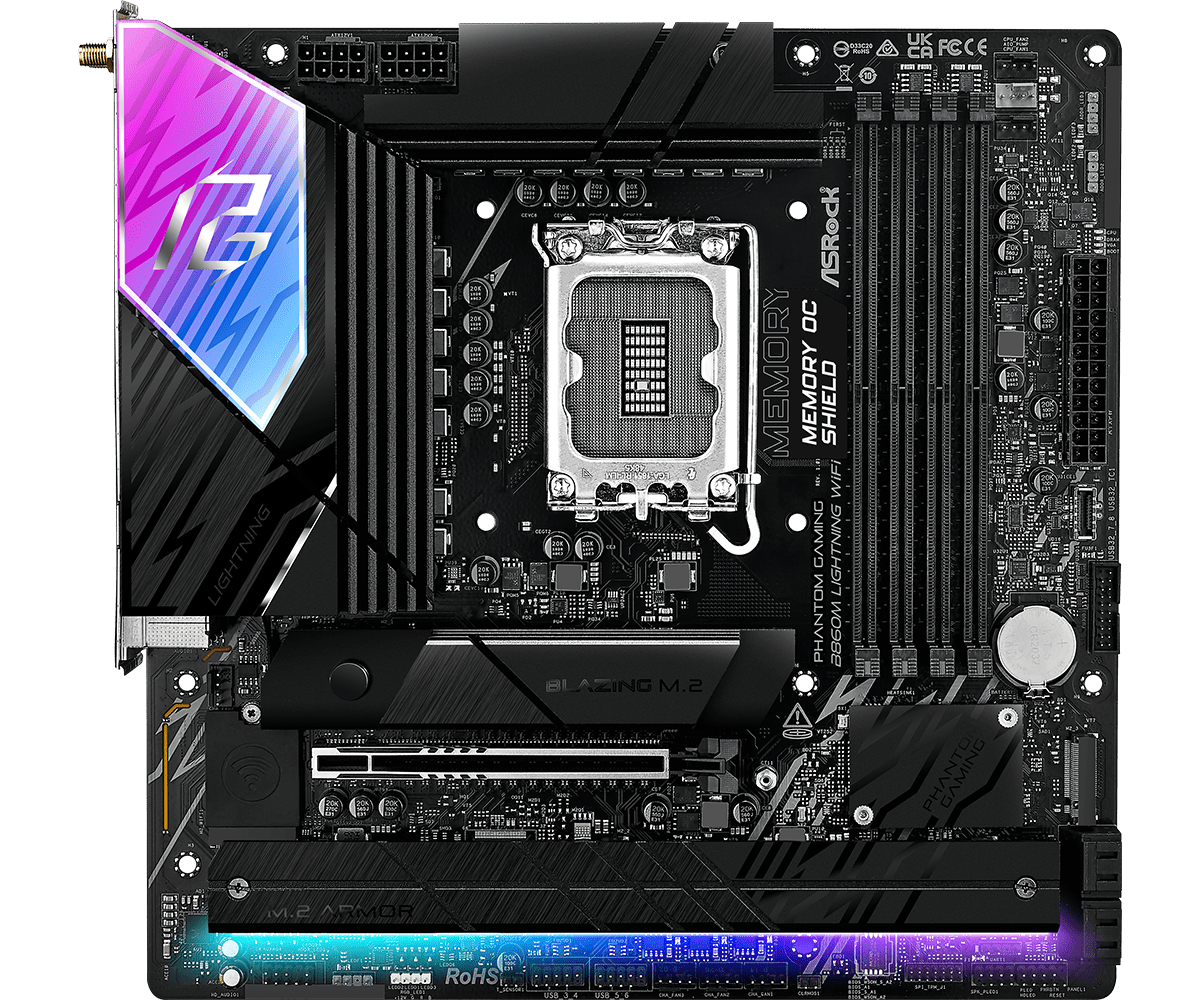

MOTHERBOARD ASROCK PHANTOM GAMING B860M LIGHTNING WIFI LGA1851 DDR5 - mATX
MOTHERBOARD ASROCK PHANTOM GAMING B860M LIGHTNING WIFI LGA1851 DDR5 - mATX - Gambar 2
MOTHERBOARD ASROCK PHANTOM GAMING B860M LIGHTNING WIFI LGA1851 DDR5 - mATX - Gambar 3

MOTHERBOARD ASROCK PHANTOM GAMING B860M LIGHTNING WIFI LGA1851 DDR5 – mATX

Categories , , Tag

Rp3.500.000

Pcs
Tanya Produk ini?
Share

Mohon untuk Pastikan dahulu ketersediaan Stok sebelum Checkout dengan menghubungi Whatsapp di atas

QR Code
  • Unique Feature
    Superb Productivity
    – PCIe Gen5 (Graphics, M.2)
    – Dual Channel DDR5
    – Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s)
    Rock-Solid Durability
    – Server-Grade Low-Loss PCB
    – 12+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor
    – Memory OC Shield
    – Flexible Integrated I/O Shield
    – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
    Ultrafast Gaming
    – Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module
    – Killer DoubleShot™ Pro
    EZ Update
    – BIOS Flashback Button
    – ASRock Auto Driver Installer
    EZ Troubleshooter
    – ASRock Post Status Checker
  • CPU
    – Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
    – Supports Intel® Hybrid Technology
    – Supports Intel® Turbo Boost Max 3.0 Technology
    – Supports Intel® Thermal Velocity Boost (TVB)
    – Supports Intel® Adaptive Boost Technology (ABT)
    – Integrated NPU for dedicated AI acceleration
  • Chipset
    – Intel® B860
  • Memory
    – Dual Channel DDR5 Memory Technology
    – 4 x DDR5 DIMM Slots
    – Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
    – Supports Clocked Unbuffered DIMM (CUDIMM)
    – Max. capacity of system memory: 256GB
    – Supports Intel® Extreme Memory Profile (XMP) 3.0x

    * 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
  • BIOS
    – 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    – Intel® Xe LPG Graphics Architecture
    – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
    – 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    ** Supports two 4K displays or one 8K display
    Only the CPU’s embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
  • Audio
    – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    – Impedance Sensing on Rear Out port
    – Individual PCB Layers for R/L Audio Channel
    – Nahimic Audio
  • LAN
    – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    – Killer E3100G
    – Supports Killer LAN Software
    – Supports Killer DoubleShot™ Pro
  • Wireless LAN
    – 802.11axe Wi-Fi 6E Module
    – Supports IEEE 802.11a/b/g/n/ac/ax/axe
    – Supports Dual-Band 2×2 160MHz with extended 6GHz band* support
    – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    – Supports Bluetooth 5.3
    – Supports MU-MIMO
    – Supports Killer LAN Software
    – Supports Killer DoubleShot™ Pro

    *The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
    A 6GHz compatible router is required for 6E functionality.
  • Slots
    CPU:
    – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

    * Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 4 x SATA3 6.0 Gb/s Connectors

    * Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    CPU:
    – 1 x Thunderbolt™ 4/USB4 Type-C (Rear)
    Chipset:
    – 1 x USB 3.2 Gen2 Type-C (Front)
    – 2 x USB 3.2 Gen2 Type-A (Rear)
    – 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
    – 6 x USB 2.0 (2 Rear, 4 Front)

    * All USB ports support ESD Protection
  • Connector
    – 1 x Thermistor Cable Header
    – 1 x SPI TPM Header
    – 1 x Power LED and Speaker Header
    – 1 x RGB LED Header*
    – 3 x Addressable LED Headers**
    – 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
    – 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
    – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    – 1 x 24 pin ATX Power Connector
    – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    – 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

    * Supports in total up to 12V/3A, 36W LED Strip
    ** Support in total up to 5V/3A, 15W LED Strip
    *** CPU_FAN1 supports the fan power up to 1A (12W).
    CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
    CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

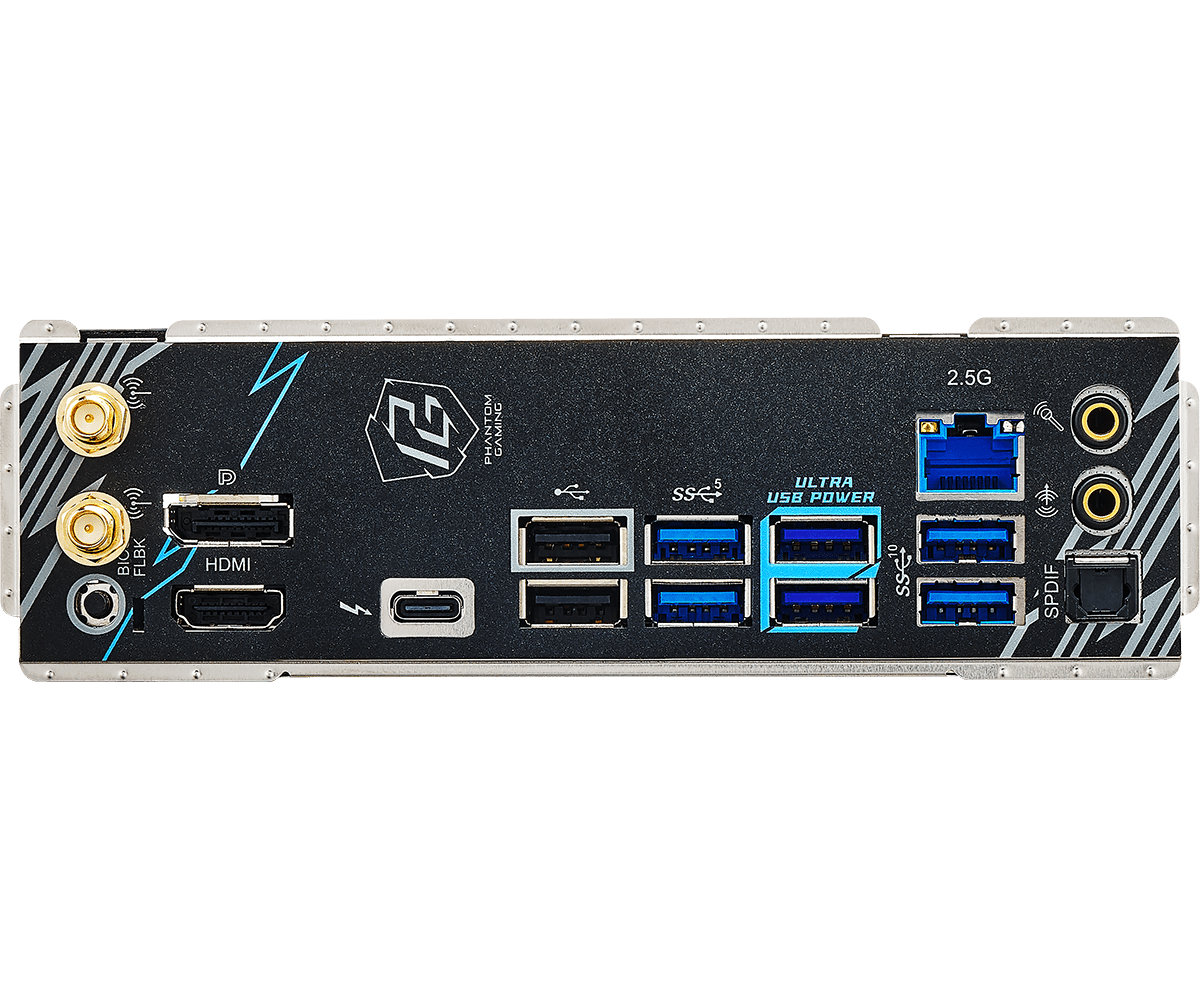

  • Rear Panel I/O
    – 2 x Antenna Ports
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 1 x Optical SPDIF Out Port
    – 1 x Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s)*
    – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
    – 4 x USB 3.2 Gen1 Ports**
    – 2 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – 1 x BIOS Flashback Button
    – 1 x Line Out Jack (Gold Audio Jack)
    – 1 x Microphone Input Jack (Gold Audio Jack)

    * Supports USB PD 3.0 up to 5V@3A (15W) charging
    ** USB32_34 support Ultra USB Power.
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (Phantom Gaming Tuning)
    – Killer Control Center
    – ASRock Polychrome SYNC*
    UEFI
    – ASRock EZ Mode
    – ASRock Full HD UEFI
    – ASRock My Favorites in UEFI
    – ASRock Auto Driver Installer
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    – 2 x SATA Data Cables
    – 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    – 1 x Thermistor Cable
    – 1 x Screw for M.2 Socket
  • Form Factor
    – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    – 2oz Copper PCB
  • OS
    – Microsoft Windows® 11 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
