Spesifikasi

Desain

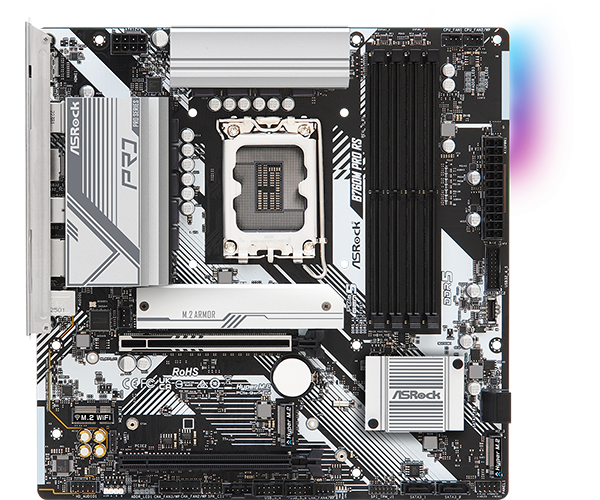

• Form Factor: Micro ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)
• Pre-Installed I/O Shield: Memudahkan instalasi dan melindungi port I/O.
• LED Header:
  • 1 x RGB LED Header (12V/3A, 36W)
  • 3 x Addressable LED Headers (5V/3A, 15W)

Performa

• CPU Support:
  • 14th, 13th, & 12th Gen Intel® Core™ Processors (LGA1700)
  • Intel® Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), Adaptive Boost Technology (ABT)
• Chipset: Intel® B760
• Power Phase: 7+1+1 Power Phase dengan 50A Dr.MOS untuk VCore+GT
• RAID Support: RAID 0, 1, 5, dan 10 untuk perangkat penyimpanan SATA

Memori

• Tipe: Dual Channel DDR5
• Slot: 4 x DDR5 DIMM Slots
• Kapasitas Maksimal: 256GB
• Kecepatan:
  • 1DPC 1R: Up to 7200+ MHz (OC), 4800 MHz Natively
  • 1DPC 2R: Up to 6000+ MHz (OC), 4400 MHz Natively
  • 2DPC 1R: Up to 5600+ MHz (OC), 4000 MHz Natively
  • 2DPC 2R: Up to 4800+ MHz (OC), 3600 MHz Natively
• XMP Support: Intel® Extreme Memory Profile (XMP) 3.0

Grafik

• Integrated Graphics: Intel® Xe Graphics Architecture (Gen 12)
• Port:
  • 1 x HDMI 2.1 (4K 60Hz)
  • 1 x DisplayPort 1.4 (8K 60Hz / 5K 120Hz)

Audio

• Codec: Realtek ALC897 Audio Codec
• Fitur: 7.1 CH HD Audio dengan Nahimic Audio

Konektivitas

• LAN: 2.5 Gigabit LAN (Dragon RTL8125BG) dengan software Dragon 2.5G LAN
• USB:
  • 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
  • 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)
• WiFi/BT: 1 x M.2 Socket (Key E) untuk modul WiFi/BT PCIe

Slot Ekspansi

• PCIe:
  • 1 x PCIe 5.0 x16 Slot (PCIE1)
  • 1 x PCIe 3.0 x16 Slot (PCIE2, x4 mode)
• M.2:
  • 1 x Hyper M.2 Socket (M2_1, Key M) – PCIe Gen4x4 (64 Gb/s)
  • 2 x Hyper M.2 Socket (M2_2 & M2_3, Key M) – PCIe Gen4x4 (64 Gb/s)
• SATA: 4 x SATA3 6.0 Gb/s Connectors

Pendinginan

• Fan Connector:
  • 1 x CPU Fan Connector (4-pin)
  • 1 x CPU/Water Pump Fan Connector (4-pin)
  • 4 x Chassis/Water Pump Fan Connectors (4-pin)
• Smart Fan Speed Control: Mendeteksi otomatis 3-pin atau 4-pin fan.

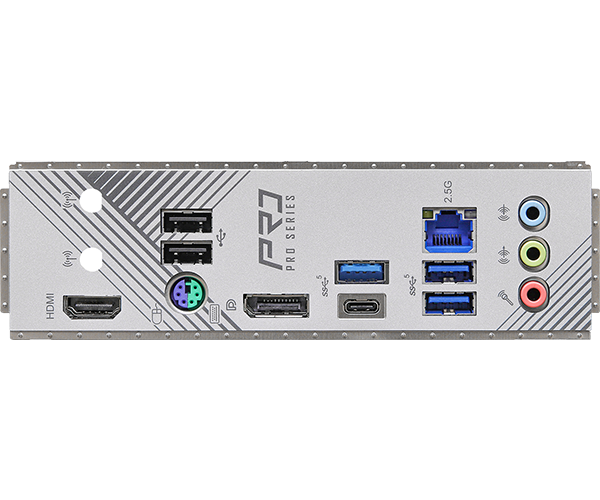

Panel Belakang I/O

• Port:
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen1 Type-C Port
  • 3 x USB 3.2 Gen1 Type-A Ports
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Antenna Mounting Points: 2 x

Software & UEFI

• Software:
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
• UEFI:
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
  • ASRock Easy RAID Installer

Aksesoris

• Termasuk:
  • 1 x User Manual
  • 2 x SATA Data Cables
  • 4 x Screws for M.2 Sockets
  • 1 x Standoff for M.2 Socket

Sistem Operasi & Sertifikasi

• OS Support: Microsoft Windows® 10 64-bit / 11 64-bit
• Sertifikasi: FCC, CE, ErP/EuP ready
