MOTHERBOARD ASROCK B650M-H/M.2+ WIFI AM5 DDR5 – mATX

Categories , , Tag

Rp2.090.000

Pcs
Tanya Produk ini?
Share

Mohon untuk Pastikan dahulu ketersediaan Stok sebelum Checkout dengan menghubungi Whatsapp di atas

QR Code
  • Unique Feature
    Superb Productivity
    – PCIe Gen5 (M.2)
    – Dual Channel DDR5
    Rock-Solid Durability
    – 6+1+1 Power Phase, 50A Dr.MOS for VCore
    Ultrafast Gaming
    – 802.11ac Wi-Fi Module
    EZ Update
    – BIOS Flashback Button
    – ASRock Auto Driver Installer
    EZ Troubleshooter
    – ASRock Post Status Checker
  • CPU
    – Supports AMD Socket AM5 Ryzenâ„¢ 9000, 8000 and 7000 Series Processors*

    * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
  • Chipset
    – AMD B650
  • Memory
    – Dual Channel DDR5 Memory Technology
    – 2 x DDR5 DIMM Slots
    – Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)*
    – Max. capacity of system memory: 128GB*
    – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*

    * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    – 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    Integrated AMD RDNAâ„¢ graphics (Actual support may vary by CPU)
    – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
  • Audio
    – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    – Nahimic Audio
  • LAN
    – Gigabit LAN 10/100/1000 Mb/s
    – Realtek RTL8111H
  • Wireless LAN
    – 802.11ac Wi-Fi Module
    – Supports IEEE 802.11a/b/g/n/ac
    – Supports Dual-Band (2.4/5 GHz)
    – Supports high speed wireless connections up to 433Mbps
    – Supports Bluetooth 5.0
  • Slots
    CPU:
    – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
    – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    * Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    – 4 x SATA3 6.0 Gb/s Connectors

    * Supports NVMe SSD as boot disks
  • RAID
    – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

    * Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    – 1 x USB 3.2 Gen1 Type-C (Rear)
    – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
    – 6 x USB 2.0 (2 Rear, 4 Front)

    * All USB ports support ESD Protection
  • Connector
    – 1 x SPI TPM Header
    – 1 x Power LED and Speaker Header
    – 1 x CPU Fan Connector (4-pin)*
    – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    * CPU_FAN1 supports the fan power up to 1A (12W).
    ** CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

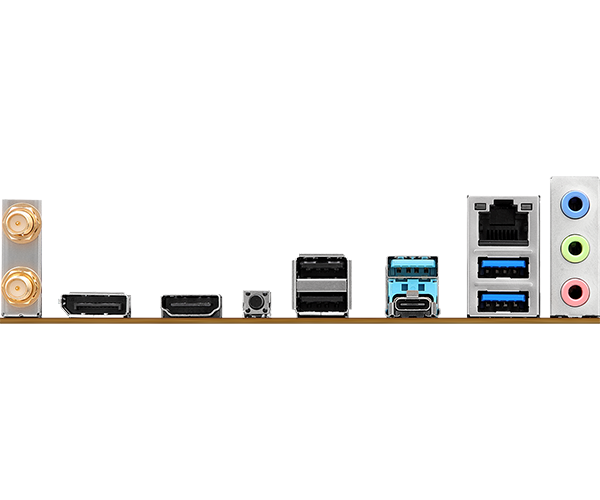

  • Rear Panel I/O
    – 2 x Antenna Ports
    – 1 x HDMI Port
    – 1 x DisplayPort 1.4
    – 1 x USB 3.2 Gen1 Type-C Port
    – 3 x USB 3.2 Gen1 Type-A Ports
    – 2 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – 1 x BIOS Flashback Button
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (A-Tuning)*
    UEFI
    – ASRock Full HD UEFI
    – ASRock Auto Driver Installer
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    – 1 x I/O Shield
    – 2 x ASRock WiFi 2.4/5 GHz Antennas
    – 2 x SATA Data Cables
    – 2 x Screws for M.2 Sockets
  • Form Factor
    – Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
  • OS
    – Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
