A620I Lightning WiFi(L1)
MOTHERBOARD ASROCK A620I LIGHTNING WiFi AM5 DDR5 - mITX - Gambar 2
MOTHERBOARD ASROCK A620I LIGHTNING WiFi AM5 DDR5 - mITX - Gambar 3

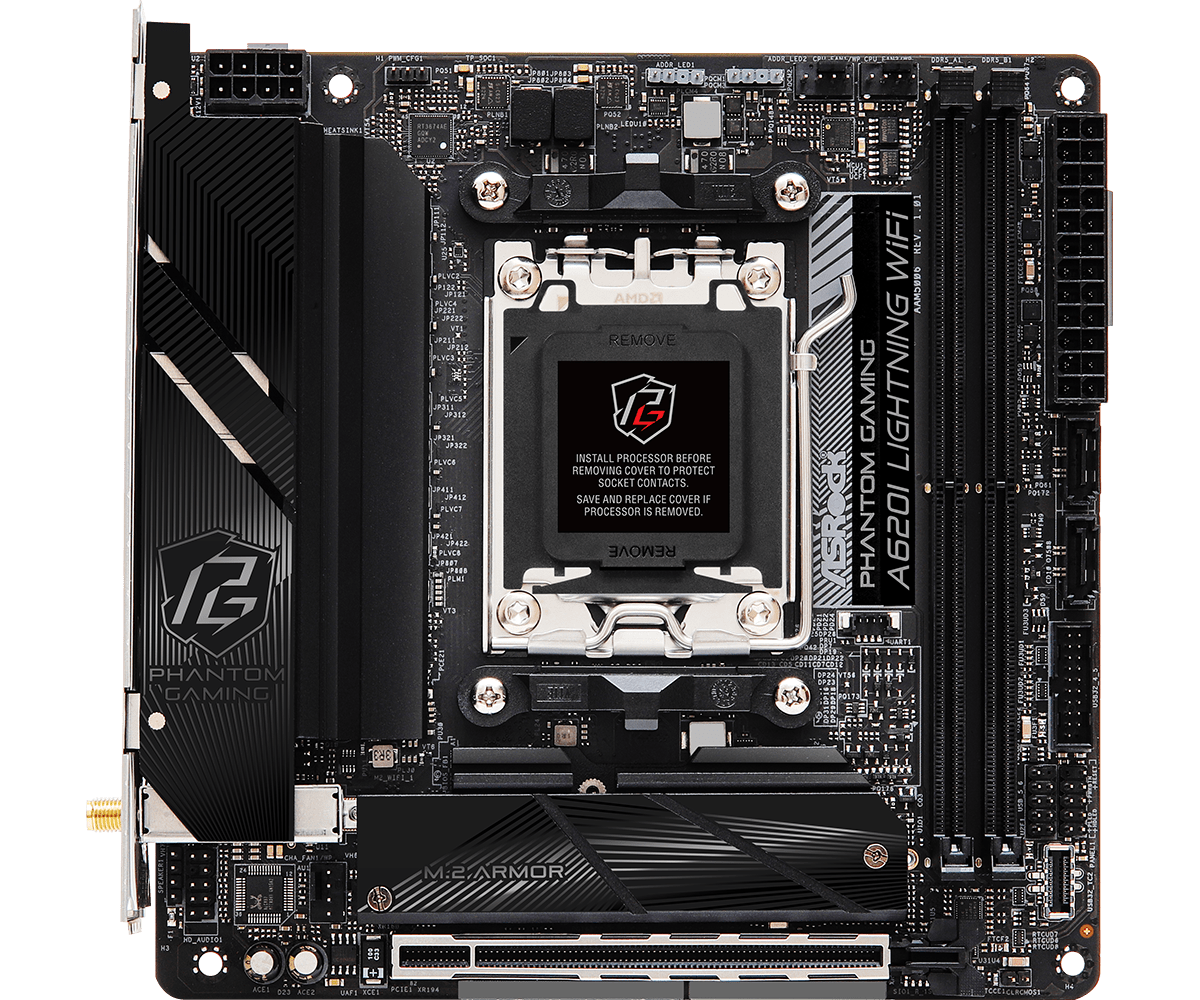

MOTHERBOARD ASROCK A620I LIGHTNING WiFi AM5 DDR5 – mITX

Categories , , Tag

Rp2.900.000

Pcs
Tanya Produk ini?
Share

Mohon untuk Pastikan dahulu ketersediaan Stok sebelum Checkout dengan menghubungi Whatsapp di atas

QR Code
  • Unique Feature
    Superb Productivity
    – Dual Channel DDR5
    Rock-Solid Durability
    – 8+2+1 Power Phase, 60A Dr.MOS with Enlarged Heatsink Armor
    – Pre-Installed I/O Shield
    – Flexible Integrated I/O Shield
    Ultrafast Gaming
    – 2.5G LAN, 802.11ax Wi-Fi 6E Module
    – ASRock Lightning Gaming Ports
    EZ Update
    – BIOS Flashback Button
    – ASRock Auto Driver Installer
  • CPU
    – Supports AMD Socket AM5 Ryzenâ„¢ 9000, 8000 and 7000 Series Processors*

    *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
  • Chipset
    – AMD A620
  • Memory
    – Dual Channel DDR5 Memory Technology
    – 2 x DDR5 DIMM Slots
    – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
    – Max. capacity of system memory: 128GB
    – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

    *Please refer to Memory Support List for more information.
  • BIOS
    – 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    Integrated AMD RDNAâ„¢ graphics (Actual support may vary by CPU)
    – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • Audio
    – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    – Nahimic Audio
  • LAN
    – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    – Dragon RTL8125BG
    – Supports Phantom Gaming LAN Software
    – Smart Auto Adjust Bandwidth Control
    – Visual User Friendly UI
    – Visual Network Usage Statistics
    – Optimized Default Setting for Game, Browser, and Streaming Modes
    – User Customized Priority Control
  • Wireless LAN
    – 802.11ax Wi-Fi 6E Module
    – Supports IEEE 802.11a/b/g/n/ac/ax
    – Supports Dual-Band 2×2 with extended 6GHz band* support
    – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    – Supports Bluetooth 5.2 + High speed class II
    – Supports MU-MIMO

    *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
    A 6GHz compatible router is required for 6E functionality.
  • Slots
    CPU:
    – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*
    – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    * Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    – 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
    – 2 x SATA3 6.0 Gb/s Connectors

    * Supports NVMe SSD as boot disks
  • RAID
    – Supports RAID 0 and RAID 1 for SATA storage devices
    – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

    * Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    – 1 x USB 3.2 Gen2 Type-C (Rear)
    – 2 x USB 3.2 Gen2 Type-A (Rear)
    – 1 x USB 3.2 Gen1 Type-A (Rear)
    – 1 x USB 3.2 Gen1 Type-C (Front)
    – 2 x USB 3.2 Gen1 Type-A (Front)
    – 4 x USB 2.0 (2 Rear, 2 Front)

    * All USB ports support ESD Protection
  • Connector
    – 2 x Addressable LED Headers*
    – 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
    – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector
    – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    – 1 x Front Panel Type C USB 3.2 Gen1 Header

    *Support in total up to 5V/3A, 15W LED Strip
    ** CPU_FAN1/WP and CPU_FAN2/WP support the fan power up to 2A (24W).
    *** CHA_FAN1/WP supports the fan power up to 2A (24W).
    CPU_FAN1/WP, CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

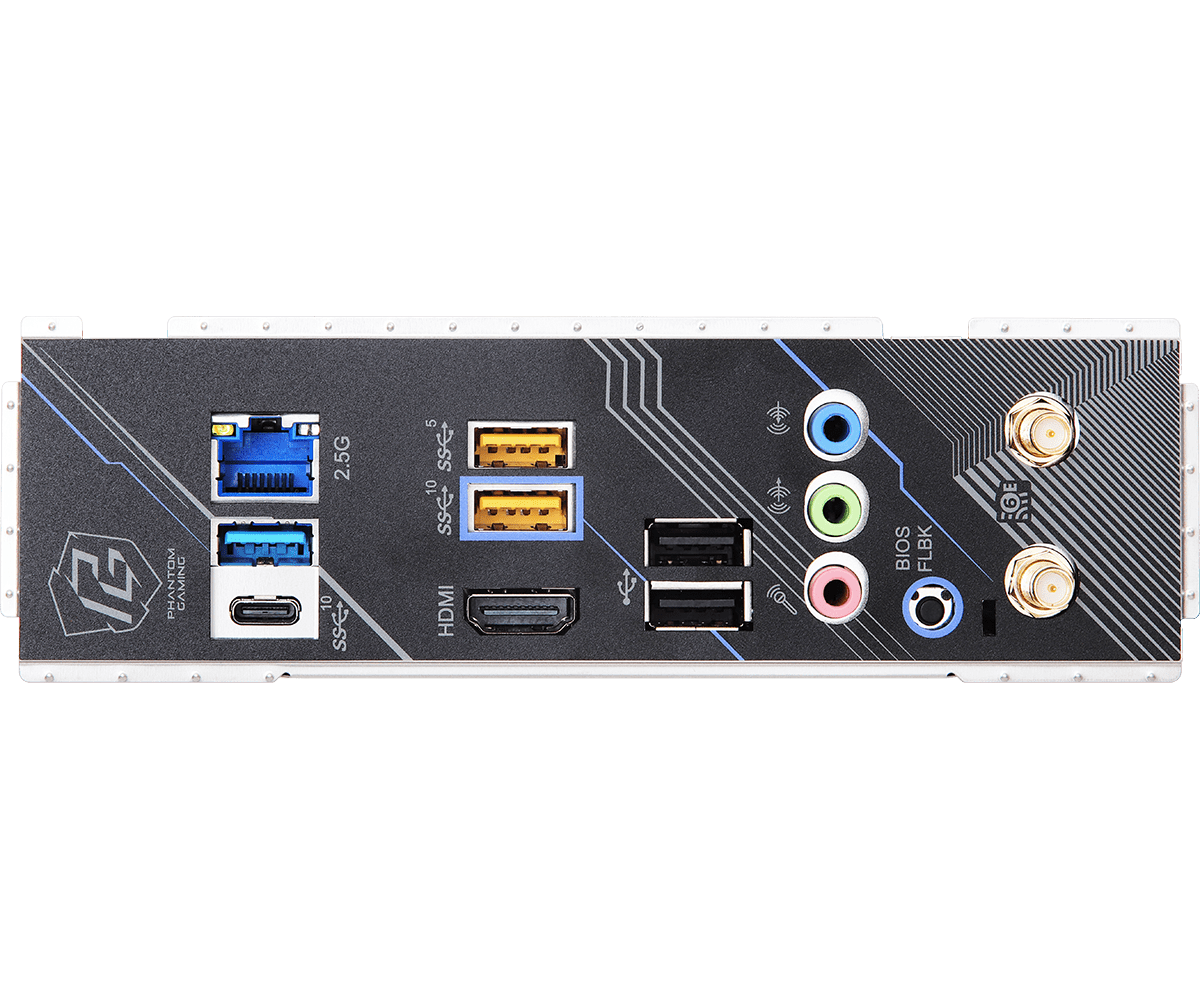

  • Rear Panel I/O
    – 2 x Antenna Ports
    – 1 x HDMI Port
    – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)*
    – 1 x USB 3.2 Gen1 Type-A Port*
    – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    – 2 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – 1 x BIOS Flashback Button
    – HD Audio Jacks: Line in / Front Speaker / Microphone

    * USB32_23 are Lightning Gaming Ports.
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (Phantom Gaming Tuning)
    – ASRock Phantom Gaming LAN Software
    – ASRock Polychrome SYNC*
    UEFI
    – ASRock Full HD UEFI
    – ASRock Auto Driver Installer
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    – 1 x User Manual
    – 2 x SATA Data Cables
    – 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    – 1 x Screw for M.2 Socket
  • Form Factor
    – Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
    – 8 Layer PCB
  • OS
    – Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
